Download NCK Pro Box drivers: How to Setup?

NCK Pro Box is a multifunctional phone servicing tool that supports a wide range of smartphones to help you with flash, software repair, and unlocking procedures. It is more or less similar to the Infinity Chinese Miracle (CM) II, Miracle, GSM Aladdin, etc. In this post, we will look at how to download NCK Pro Box drivers and how to set up this box.

Moreover, the NCK Pro Box is specifically designed for remote unlocking of IMEI Code calculation. This box also supports a huge variety of smartphones. So, without further ado, let us get straight into the article;

NCK Pro Box

What is NCK Pro Box?

As mentioned above it is a multifunctional repair box that supports a wide range of smartphones from different manufacturers.

Features

  • Direct Unlock
  • Read Codes
  • Alcatel, Motorola WX-series: NCK (Network Control Key) code
  • NSCK (Network Subset Control Key) code
  • SPCK (Service Provider Control Key) code
  • CCK (Corporate Control Key) code
  • PCK (Personalization Control Key) code

Flash/Backup

  • Read phone’s firmware version
  • COM port speed – up to 921600 bps
  • Read and restore a backup
  • Upgrade firmware
  • Upgrade and downgrade firmware version
  • Huge flash files archive: Latest firmware versions
  • Huge archive of operator’s firmware
  • Vast selection of language packs

IMEI

  • Repair IMEI, including models with more than one SIM
  • Software IMEI repair
  • Repair “Blank” IMEI

Repair Security Area

  • Alcatel Security Area via flashing repair
  • Works with FFS through boot mode
  • Works with network calibrations (backup and restore)
  • Phone book backup
  • Format file system

Supported CPUs

  • Qualcomm CPU Supported
  • Broadcom CPU Supported
  • Infineon
  • Swift
  • Sysol3
  • MediaTek: MT6219, MT6223, MT6225, MT6226, MT6235, MT6236, MT6238, MT6239, MT6252, MT6253,
  • MT6268
  • Support for new CPUs and flash chips are being added immediately
  • Works via UART interface – any virtual or physical COM-port (up to 921600 bps)
  • Spreadtrum (SPD)
  • All Winner

Other Features

  • ADB Communication Function
  • NV Read / Write
  • Remove ESN, MEID, SPC, and IMEI from Full Firmware
  • Qualcomm Firmware Editor
  • One-click FTM Fix for the phones stuck in FTM Mode
  • Read / Write RUIM Configuration
  • Auto-Detection of CPU type, Flash and EFS size
  • Read Firmware in Normal and Download Mode
  • ESN to MEID Brute-force to find matching MEIDs for a given ESN
  • Full Diagnostic Terminal to send any Diag Command to a phone

Supported Operating System

  • Windows 2000
  • Windows XP 32/64-bit
  • Windows Vista 32/64-bit
  • Windows Server 2003 32/64-bit
  • Windows 7 32/64-bit
  • Windows 10

Download NCK Pro Box Drivers

Below you can find the download links to the drivers for the NCK Pro Box.

Download NCK Pro Box Drivers

Steps to Set-up NCK Pro Box

Follow the below steps to successfully set up the NCK Pro Box.

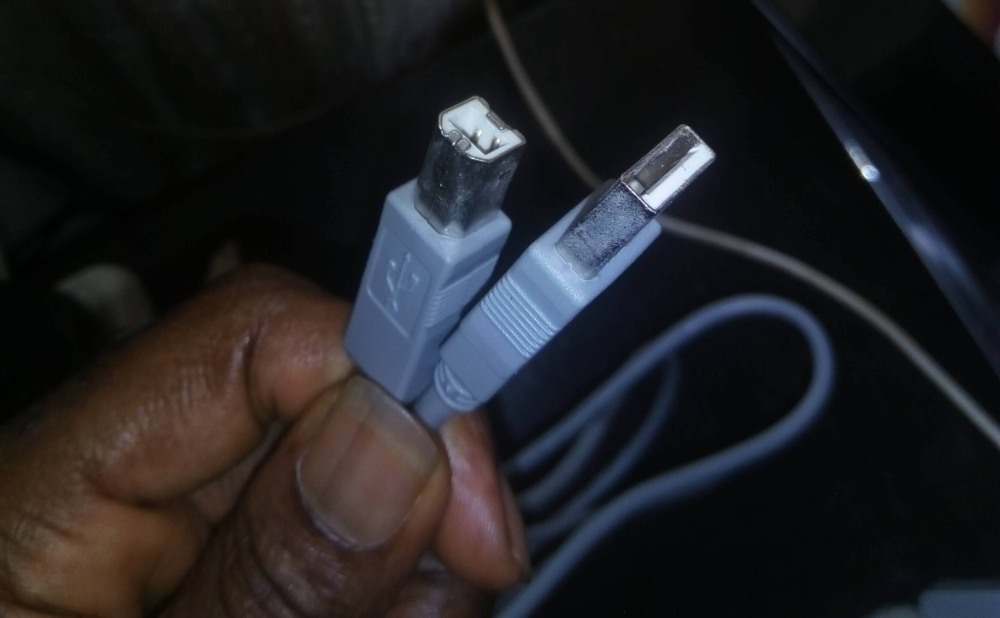

  1. You need to get a cable that should look like in the image below. Use it to connect the box to the PC. (the one on the left goes into the NCK Pro box while the one on the right goes into the PC)
  2. Then, from the above download link provided, you need to download the Support Access and Smart Card drivers.

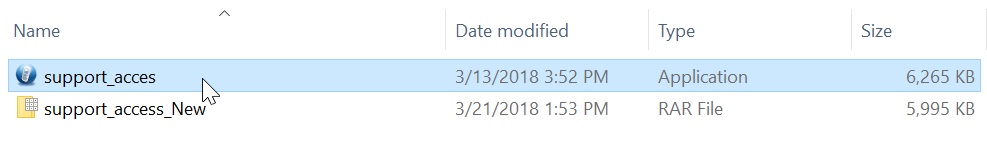

  3. Now, extract both the driver files, and install Smart Card drivers. Then run support_access.exe (You might get a virus warning, set your Antivirus to allow it)

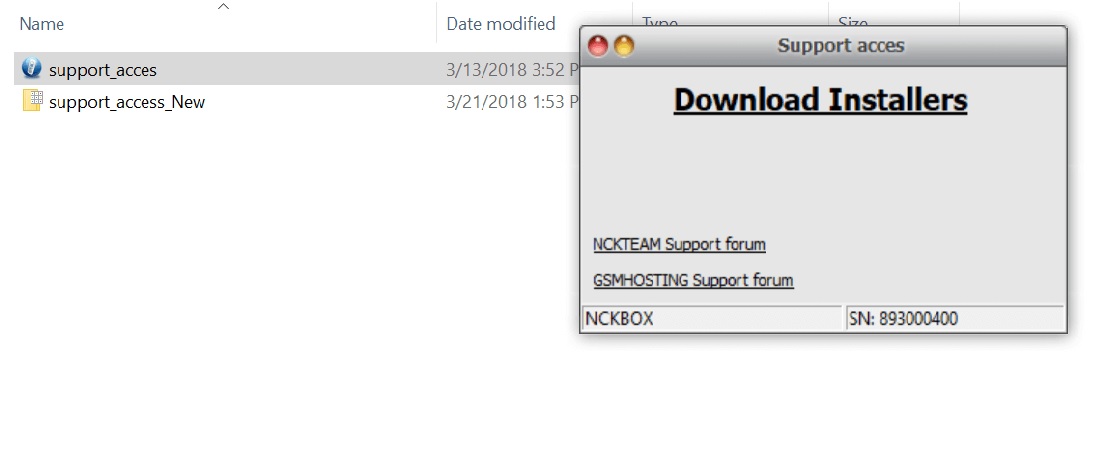

  4. The Support Access dashboard should pop up, click on Download Installers.

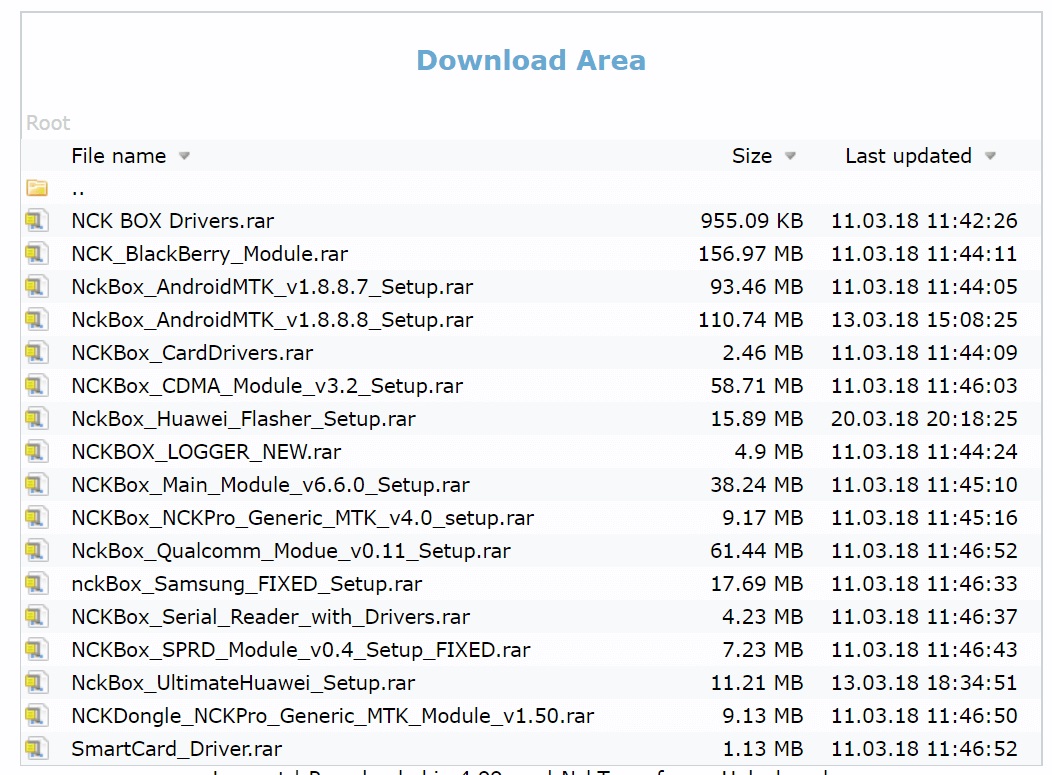

  5. Now, the Download area should automatically get launched in your default Web browser.
  6. Download NCK Box Main Module Setup (you can download any other modules you’ll be needing after setup).

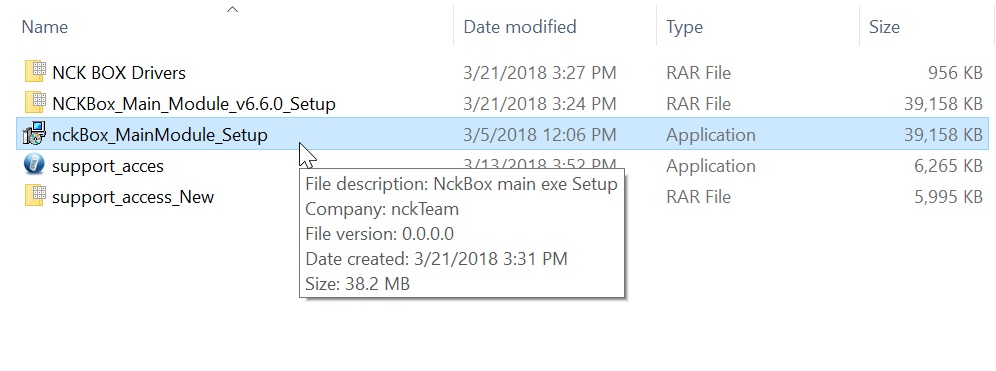

  7. Now, you need to extract and install nckBox_MainModule_Setup.exe file. Then, launch NckBox Main once you are done with the installation.
  8. In the Card Updater dashboard, click Update card.
  9. You should get an initialization ok, ready to use message. Then, click on close, and then, relaunch NckBox Main.
  10. Now, you should be in the Main NckBox Dashboard.
  11. Voila! You have successfully installed and set-up the NCK Pro Box on your desktop/laptop.

Important notice

  • Unless you’re using a loader version, you’re going to need the hardware box for any of the NCK Box modules to work.
  • Its different modules for different purposes so ensure to install the required module.
  • When updating, its recommended you first uninstall older versions of the module before installing the update.

Source: Hovatek

Conclusion

So, there you have it from my side in this article. hope you liked this post. Please do let us know in the comments section below if you faced any difficulties or confusion while following the above-mentioned steps.
