Poco M3 (Citrus) ISP UFS PinOUT | Test Point

Poco officially pulled the curtains on their latest M series smartphone, the Poco M3. It was launched officially on the 24th of November, but most of the specifications of the smartphone were already leaked or tweeted out by the company before the release. This was a highly anticipated device in the budget segment as the M series from Poco is very well taken, specifically by the Indian demographic.

In this guide, we will show you the real image of the UFS ISP pinout and test point for the Poco M3 Citrus. By using the ISP PinOUT, you can easily restore the stock ROM, bypass FRP lock, or reset user data on your device via Z3X EasyJTag Box Tool.

What is ISP PinOUT?

ISP or In-system programming also known as in-circuit serial programming (ICSP) for hardware that has a cross-reference of pins or contacts. By shorting the pins together, you can power or signal the logic board (motherboard) of an electronic device such as a mobile, computer. You will find the IS Pinout connection on the logic board of your device. Therefore, you will need to remove the back panel of the handset and follow the below image to locate the pinout.

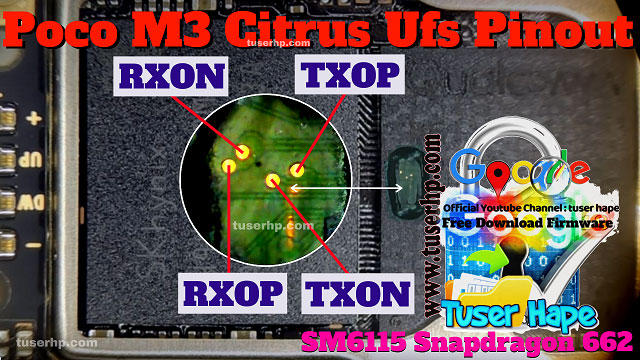

Poco M3 (Citrus) UFS ISP Pinout Image:

Poco M3 (Citrus) ISP UFS PinOUT

I hope this guide was helpful to find the Poco M3 Citrus UFS ISP Pinout Testpoint.

Advertisements

Poco M3 Specifications:

The smartphone features a 6.53 inch IPS LCD with an FHD+ resolution and an aspect ratio of 19.5:9. This is not a high refresh rate panel like some other Poco devices. Under the hood, we have the mid-range Qualcomm Snapdragon 662 which comes with the Adreno 610 GPU. This is not a blazing fast processor by any means, but it can handle most tasks quite easily. It is one of the most widely used processors for mid-range or budget Android devices.

At the back, we get a dual-tone design with one tone holding the triple camera setup. Here, we get a 48 MP primary sensor with an f/1.8 lens, a 2 MP macro sensor with an f/2.4 lens, and a 2 MP depth sensor with an f/2.4 lens. The primary comes with phase detection autofocus for better focus speeds. As for the front side, we get a single 8 MP sensor with an f/2.1 lens. It is housed in a water drop style at the top.

We get two storage variants with the Poco M3 with only a single RAM option: 4GB+64GB and 4GB+128GB. In terms of connectivity, we do get all the basics, Wi-Fi 802.11, Bluetooth 5.0, GPS, Infrared port, FM radio, and USB Type-C 2.0. But the most striking features of the device are its huge 6,000mAh battery and dual speaker setup for stereo. It supports fast charging of up to 18W and one can even charge other devices using the Poco M3, that is it even doubles up as a power bank for other devices. We get three color options with this smartphone: Cool Blue, Poco Yellow, and Power Black.
