How to Root Pixel 7 and 7 Pro Using Magisk Patched Boot Image

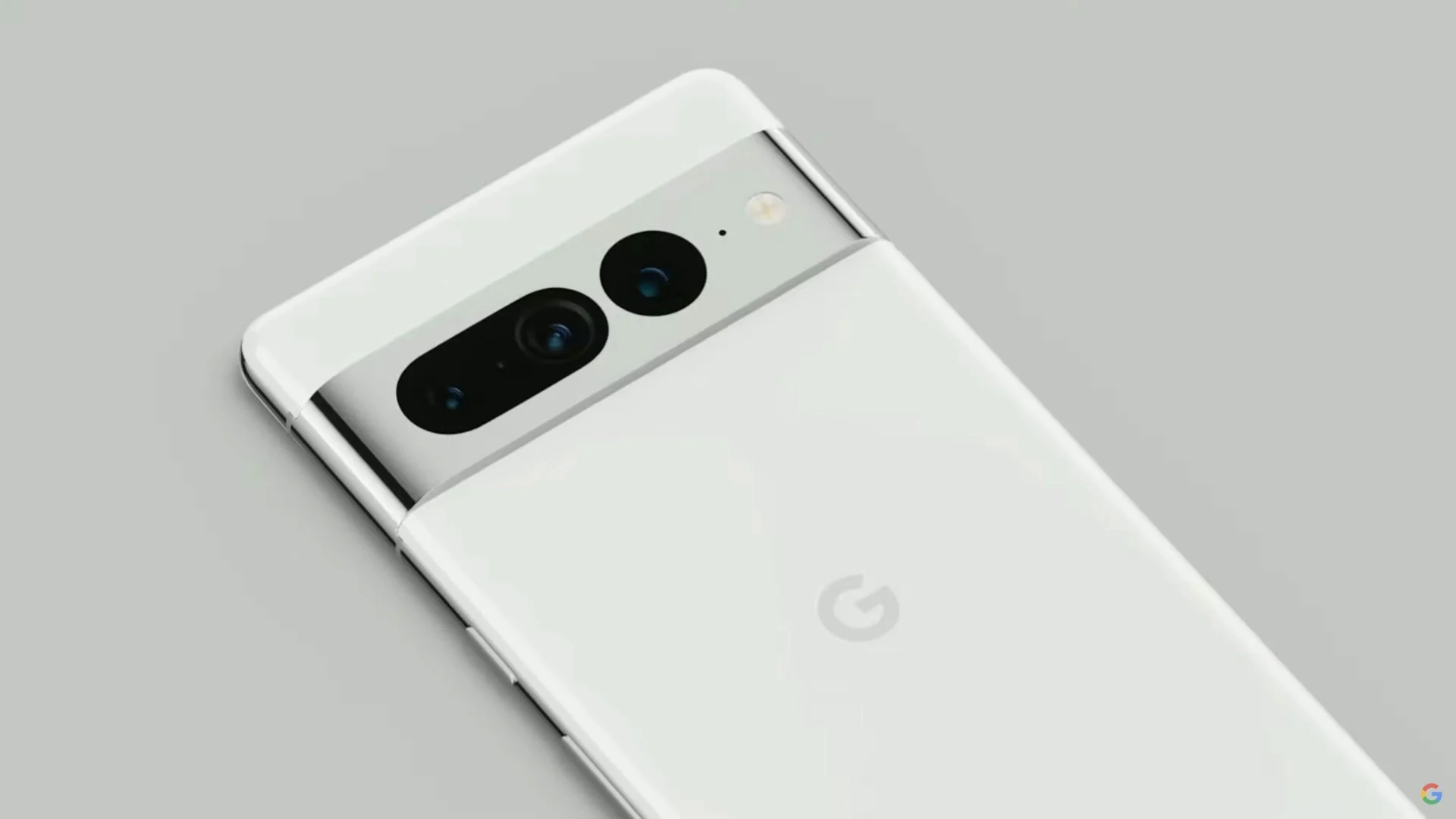

Google Pixel 7 and Pixel 7 have gone official. The devices are getting praised in the tech community for bringing the very best of the software experience and design refinements. Google Pixel phones are mostly about software optimizations. With the Pixel 7 series, the AI processing in images and videos is much improved this time. Also, the software is more polished than the Pixel 6, as there have not been complaints about critical issues in the Pixel 7 and 7 Pro.

How to root Google Pixel 7 Pro using Magisk patched boot image

Google ships Pixel 7 and Pixel 7 Pro with Android 13 out of the box. The devices already offer tons of customization. Android’s open-source operating system allows developers to extract the maximum benefits. Though many third-party apps are available on the play store, rooting the device can open a different dimension. This guide will tell you how to root a Google Pixel 7 or Pixel 7 Pro using Magisk’s patched boot image. Before I go to the steps, let’s examine the pros and cons of rooting an Android phone.

What Are the Pros and Cons of Rooting a Phone?

If you are unhappy with the customizations and features offered by your smartphone brand, rooting the device could be useful as it allows users to install new custom ROMs to change the software experience. On a rooted phone, you can easily remove bloatware. Google Pixels does not ship with bloatware, but devices from Xiaomi, Oppo, and Vivo are filled with unuseful applications. You can do a lot of stuff on a rooted phone, such as tweaking the CPU speed, installing custom kernels, and improving the battery life.

Rooting a phone is easy if the device already has an unlocked bootloader. There are numerous apps available on the internet. Some apps can root your phone with a single click. However, the problem arises when the rooting fails. It can brick your phone or get stuck on the screen. It has happened with many users in the past; therefore, I feel it’s important to mention it here. Your device warranty may get void after rooting it. That’s a big minus point if you have recently purchased the device. After you have rooted the phone, some banking apps may not work. Though, there are solutions on the internet to fix it.

Now that you know the benefits and risks of rooting a phone, let’s take the required steps to root your Google Pixel.

Here’s How to Root Google Pixel 7 and 7 Pro Using Magisk Patched Boot Image

Below we have mentioned a step-by-step process to root your Google Pixel 7 or Pixel 7 Pro. Please do not skip any steps; otherwise, you may face issues on your device.

Disclaimer:

The process of unlocking the bootloader and rooting may void the warranty of your Google Pixel. We at GetDroidTips won’t be responsible for any damage/error to your handset while/after following the guide. Please take a complete backup of your phone to avoid any unforeseen situations.

If you already have an unlocked bootloader on your Google Pixel, go the Step 6.

Step 1: Back Up Your Google Pixel

Take a complete backup of your Google Pixel 7 or Pixel 7 Pro and save it to your PC or cloud storage. Don’t know what to back up or how to back up your Android phone? Read our detailed guide on how to take a full backup of any Android device.

Step 2: Enable USB Debugging and OEM Unlocking On Your Pixel

To unlock the bootloader on your Google Pixel 7 or Pixel 7 Pro, you must turn on the USB Debugging and OEM unlocking options. The USB Debugging option helps create a successful ADB connection between your phone and PC. Both options can be found inside the Developer options menu, which is hidden by default on all Google Pixel phones. Here’s how to enable Developer options:

  1. Open the Settings app on your phone.
  2. Click About phone.
  3.  Tap 7 times on the build number. It will unhide the Developer options menu.
  4. Go back to the Settings page.
  5. Tap on System and click Developer options.

On the Developer options page, find USB debugging and OEM unlocking. Enable the two options and move on to the next step.

Step 3: Install Android SDK on Your PC

You’ll need to install the Android SDK Platform Tools on your computer to make an ADB connection between the two devices. It’s critical to have Android SDK Platform Tools to run ADB and Fastboot commands. Go ahead and download the Android SDK Platform Tools on your PC.

Step 4: Boot Your Google Pixel to Fastboot Mode

To boot your Google Pixel 7 or Pixel 7 Pro to the Fastboot mode, follow the steps:

1. Connect your phone to the PC through a USB cable. If a dialogue box opens on your phone to verify the ADB connection, verify it.

2. Go to the platform-tools folder on your PC, type CMD in the address bar, and hit the Enter button to launch the Command Prompt.

3. Run the following command to check if the ADB connection is successful.

fastboot devices

If the command returns a random string of numbers and letters, the ADB is connection is successful. The random string is nothing but your device ID.

4. Type in the following command on the Command Prompt and hit Enter to boot the phone into the Fastboot mode.

adb reboot bootloader

Your Google Pixel should have booted to the Fastboot mode.

Step 5: Unlock the Bootloader

This is the final step you need to perform to unlock the bootloader on your Google Pixel.

1. Run the following command to unlock the bootloader:

fastboot flashing unlock

2. You’ll see a warning message on your device. Use the volume keys to navigate the Unlock the bootloader option and press the power button to select it.

3. Your device will go back to the Fastboot screen. Look at the Device status; it should be unlocked.

4. If the device does not reboot to the system automatically, press the power button or run the following command:

fastboot reboot

You now have an unlocked bootloader on your Google Pixel.

Step 6: Extract Stock Boot.img

In this step, we’ll extract the stock boot image from the factory image for your Pixel 7 or 7 Pro.

1. Go to Google’s firmware page and download the factory image for your Google Pixel.

[Important: Download the factory image for the same version installed on your device. You can navigate to Settings > About Phone > Build Number to check the current version.]

2. Extract the downloaded file on your PC.

3. Go to the Images folder and look for boot.img file. Copy this file and transfer it to your phone.

Step 7: Patch the Boot.img file via Magisk

  1. On your Google Pixel 7/Pro, download and install the Magisk app.
  2. Launch the Magisk app.
  3. Click the Install button next to Magisk.
  4. Tap on Select and Patch a File and select the boot.img file, which you transferred from the computer.
  5. Click on the LET’S GO button to patch the boot.img file.

The patched file will be saved to the Downloads folder on your phone. It should be named magisk_patched_boot.img. Transfer this file to your PC and move it to the platform-tools folder.

Step 8: Root Your Google Pixel (Temporarily)

While you could directly flash the patched boot.img file and root your Google Pixel, we are taking a safer approach. In this step, we’ll temporarily root your phone. This way, you can check if everything works fine on your phone and permanently root your Google Pixel.

A simple reboot will fix the issue if your device ends up in a bootloop. Rather than directly flashing the patched boot.img file, we recommend going this way to avoid many risks. Run the following command to boot your phone to a temporarily rooted OS:

fastboot boot magisk_patched.img

Step 9: Root Your Phone (Permanently)

If your Google Pixel does not run into problems while it was booted to a temporarily rooted OS, follow the steps below to complete the rooting process:

  1. Launch the Magisk Manager app on your phone.
  2. Click Install next to Magisk and select Direct Install (Recommended).
  3. Click LET’S GO and tap the Reboot button at the bottom right corner.
  4. You are done. Your Google Pixel is now rooted.

As mentioned earlier, you could have directly flashed the patched boot.img file to root your Google Pixel. But, we took a safer approach by testing the temporary rooted OS (step 8). Following is the command to directly flashed the patched boot:

 fastboot flash boot magisk_patched_boot.img

[Important: Please do not run the above command if you have applied Step 8 and Step 9.]

Conclusion

Rooting an Android offers an insane level of customization. But it comes with many risks, which we discussed in this post. If you have followed all the steps in the same order, rooting a Google Pixel 7 or Pixel 7 Pro should not be difficult. However, if you encounter any errors or face issues, please let us know in the comments below. We’ll try to get back to you as soon as possible.

Comments

  1. Would you please double check the file needed to patch, cause apparently sarting Android 13, in order to gain root, users should flash init_boot.img and I’m hesitant to patch boot.img for the time being. Your mention to step 8 is really important and should be used to mitigate any risk. Thanks for your time for writing this article

  2. its not working for me, i tried both init_boot and boot.img, i grabbed 230205 patch for panther, cause i have this version, any solution?
