Download or Create Scatter File for Mediatek SP Flash Tool | Android_Scatter.txt

Alright, so you are someone who has an Android Device which has a Mediatek Chip inside. It looks like you are someone who likes rooting, installing Custom ROMs, Modding Patching, and customizing your Android Device in order to get the most out of it. Well, a great one should always be willing to do so. Anyways, if you have been doing this kind of stuff on your Android Device for a while now, then the chances are that at some point in time, you must have come across the term “Scatter File”. Maybe while Flashing the stock firmware or repairing IMEI/ NVRAM.

Whatever the case might be, the thing is that you want to create a Scatter File for your Android Device and you want to do it quick. Don’t worry as we at the GetDroidTips got you covered. Today, in this post, we would be covering the topic, What is Scatter File txt? How to Create Scatter File for Any Android MediaTek device?.

What is Scatter File txt? How to Create Scatter File for any Android MediaTek device?

Now, if that sounds interesting, let us top it. At first, let us take a look at What is a Scatter File txt? should we?

What is a Scatter File txt?

A Scatter File is a .txt file which is used to describe loads of regions in an android device that is running on a MediaTek’s ARM architecture. Usually, such files are needed at the time of flashing firmware using tools like the SP Flash Tool. We can easily unbrick an Android Device by flashing the stock Firmware in most of the cases.

Download MediaTek MTK Scatter File

File Name Link
MT6571 Android Scatter Download
MT6572_Android_scatter Download
MT6580_Android_scatter Download
MT6735M_Android_scatter Download
MT6735_Android_scatter Download
MT6737M_Android_scatter Download
MT6737T_Android_scatter Download
MT6739_Android_scatter Download
MT6750_Android_scatter Download
MT6753_Android_scatter Download
MT6755_Android_scatter Download
MT6757_Android_scatter Download
MT6761_Android_scatter Download
MT6763_Android_scatter Download
MT6763V_Android_scatter Download
MT6765_Android_scatter Download
MT6771T_Android_scatter_9.0 Download
MT6771T_Android_scatter Download
MT6771_Android_scatter_8.1 Download
MT6797_Android_scatter Download
MT6765 Android Scatter Fastboot Download
Oppo_A5s_Scatter_File Download

So now, when you know what really a scatter file is, let us get to the How to Create Scatter File for Any Android MediaTek device? Should we?

How to Create Scatter File for Any Android MediaTek device?

Now, in order to Create Scatter File for Any Android MediaTek device, you need some of the prerequisites. Let us take a look at them.

Prerequisites

  • Your Android Device should be based on the Mediatek ARM Structure.
  • A USB Cable.
  • You need a PC to perform this setup.
  • You need to download and install the latest version of the MTK Droid Tools on your Windows PC. You can take a look at our post on Download MTK Droid Tool [Latest Version Available]
  • The drivers for your Android Device should be installed on your Windows PC. [Download Android USB Drivers]

Once you have the above prerequisites, it’s time to Create Scatter File for your Android MediaTek device.

How to Create Scatter File for Any Android MediaTek device?

Now, in order to Create Scatter File for your Android MediaTek device, you need to follow these steps carefully:

  • First of all, make sure you have downloaded and installed the MTK Droid Tools on your Windows PC from above.
  • Now, run the MTK Droid Tool.exe file on your PC.
  • Connect your Android Mediatek Device to your PC via a USB Cable.
  • Now, make sure you have the USB Debugging enabled on your device. You can enable it by simply going to the Settings >> About Phone >> tap on the Build Number 7 times on your Android Device. Now go back to the Settings and tap on Developer Options and enable USB Debugging.

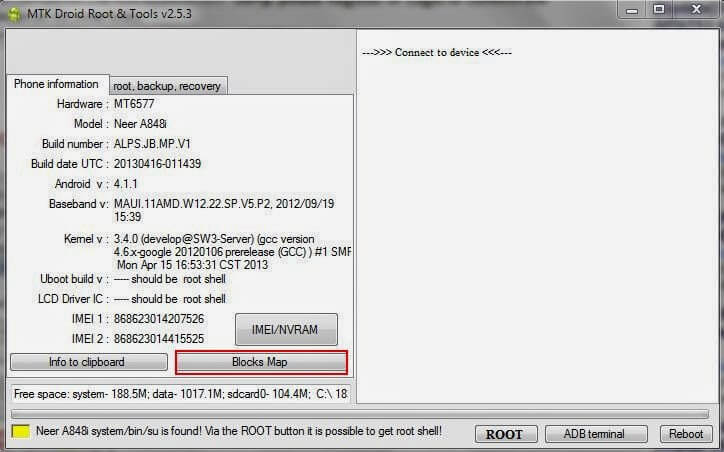

  • Once you see your Device’s Info on the MTK Droid Tool, just click on the Blocks Map button.

click on the Blocks Map button

Advertisements

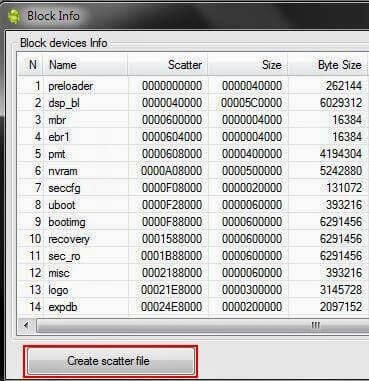

  • Now, a new window will get opened. Here, click on the Create Scatter button.

click on the Create Scatter

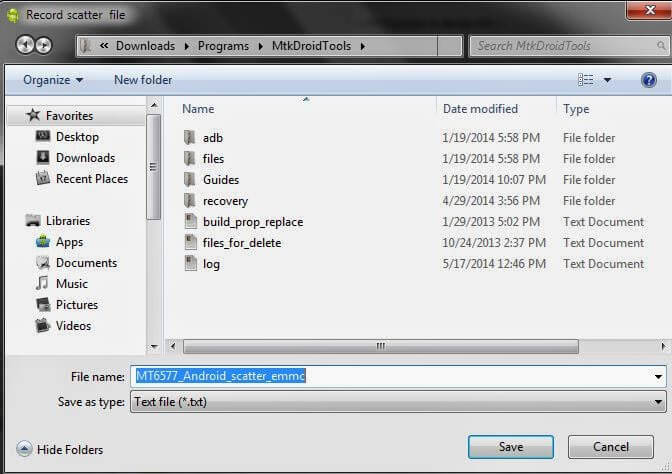

  • Now, select the directory where you want to save your Scatter File and click on Save

click on Save

  • That’s it, now disconnect your Android Smartphone from your PC.

Your scatter file would now be saved to the folder you selected.

Advertisements

So that’s it guys, this was our take on What is Scatter File txt? How to Create Scatter File for Any Android MediaTek device? We hope that you found this guide helpful. Just in case, if you have stuck somewhere between the steps or have any questions related to the topic, then feel free to leave them in the comments section down below.
