Fix: BSOD CRITICAL_STRUCTURE_CORRUPTION

The latest builds of Windows 10 are not free from errors. Almost every Windows user encounters Blue Screen Of Death errors that force the system to restart on its own. One such error is the Critical structure corruption BSOD error, which can affect your system in the long run. So as soon as you see this particular error, try to fix it right away. If you choose to ignore it, you might encounter hardware failure issues in the future.

If there is an error code associated with this error, things become easier as the code specifies the problem. But in most cases, there is just the text that reads Critical structure corruption error without any code associated with it. In that case, one needs to try all the possible solutions to fix the problem. Here in this article, we have listed out all these solutions. If you are someone who is encountering this error in your computer, try one solution after the other until you find the one that solves your problem. So without any further ado, let’s get into it.

Fix: BSOD CRITICAL_STRUCTURE_CORRUPTION

How to fix Critical structure corruption BSOD error in Windows 10?

Check the hardware:

It is not always programs or applications that are at fault for causing Windows errors. Faulty hardware can even make the system show up Blue Screen Of Death errors in Windows. So, perform a check on your hardware components:

Check Power Supply:

Make sure that your power cable is connected properly to your computer. Also, unplug any device that might require a higher than usual power supply.

Check memory:

To check your RAM status and fix some of its minor issues, use the Windows Memory Diagnostic tool.

Advertisements
  • Press Windows Key + R, and it will open up the Run dialog box.
  • Enter “mdsched.exe” here and click on Ok.
  • Choose the “Restart now and check for problems (recommended)” option.
  • Your computer will reboot now, and while booting up, it will perform the status check on your RAM.
  • If it detects any errors, it will show up on the screen.

Check HDD:

You need to use the check disk utility to check the status of your hard drive.

  • Click on the search bar and look for “command prompt.”
  • Once it shows up in the results, choose “Run as an administrator.”
  • In the command prompt window, enter the following command and press Enter.

chkdsk c: /r

Once the check is done, and all possible repairs are done, restart your computer.

If everything on your hardware side shows up to be running well, go for the next solution mentioned below.

Run SFC:

SFC or System File Checker is a built-in Windows utility tool that checks the system files on your computer. If anything is wrong with them, it tries to repair them.

Advertisements
  • Click on the search bar and look for “command prompt.”
  • Once it shows up in the results, choose “Run as an administrator.”
  • In the command prompt window, enter the following command and press Enter.

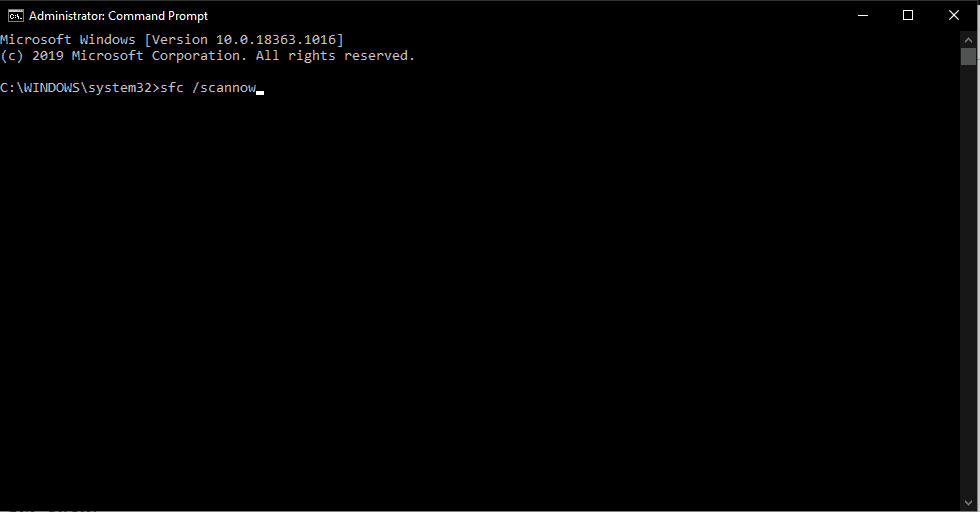

sfc/scannow

Fix: BSOD CRITICAL_STRUCTURE_CORRUPTION

  • Once the scan is complete, restart your computer.

If you still see the Critical structure corruption BSOD error, try the next solution.

Check your drivers:

You need to check for any missing drivers on your computer.

Advertisements
  • Press Windows Key + X and choose “Device Manager” from the list of options that show up.
  • Look for devices in the device list which have an exclamation mark next to them. They will be named as unknown devices.
  • Right-click on them if there are any and choose “Update driver.”
  • Then follow the on-screen instructions to let your computer automatically search for the latest driver files and install them.

You can even opt for a third-party driver utility program that will automatically scan your computer for missing or outdated driver files. It will then install all the latest drivers with just a single click. These programs do charge a bit for their service, but the convenience of getting it all done with just a simple click makes it worth it. You don’t need to worry about driver-related issues ever again.

Run DISM:

DISM is a troubleshooter utility that is built into Windows. It repairs corrupted files on a computer. So that might help with your Critical Structure Corruption blue screen of death error.

  • Click on the search bar and look for “command prompt.”
  • Once it shows up in the results, choose “Run as an administrator.”
  • In the command prompt window, enter the following commands one after the other and press Enter.

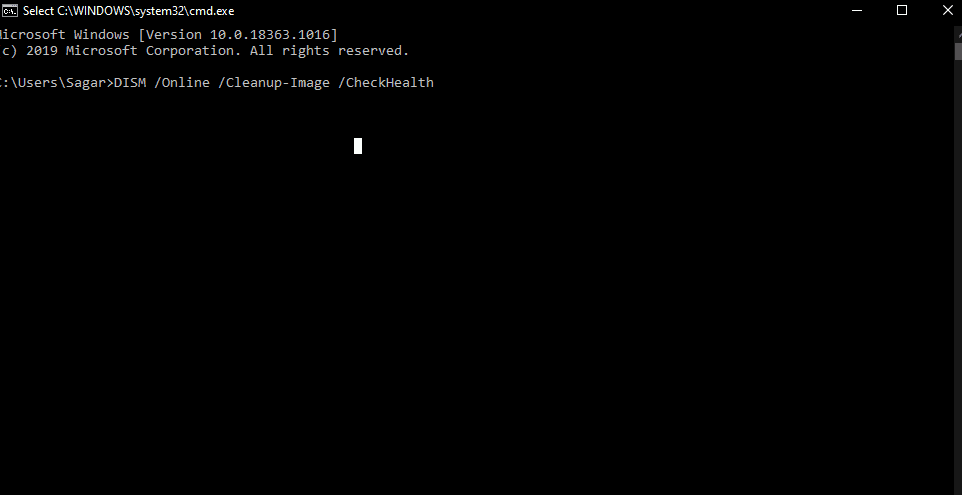

DISM /Online /Cleanup-Image /CheckHealth
DISM /Online /Cleanup-Image /RestoreHealth

Fix: BSOD CRITICAL_STRUCTURE_CORRUPTION

  • Once the scan is complete, restart your computer.

If you see the Critical Structure Corruption BSOD error even after this, go for the next potential solution mentioned below.

Uninstall problematic third-party programs:

Some programs that have incompatible Windows files within them may cause a blue screen of death error. Reports were suggesting Daemon Tools, Intel HAXM, MacDriver, Alcohol 120% are some of the applications responsible for many Windows errors. There are some other applications, too, specifically some antivirus programs. So if you have any such application or program, uninstall them and check whether that solves your problem or not.

  • Press Windows Key + I to open up the Settings app.
  • Then click on Apps.
  • Under the apps and features window, find the applications that might be the cause behind your blue screen of death error. Once you find them, click on them.
  • Then click on Uninstall.

Advertisement

After the uninstallation is done, restart your computer. If you still see the Critical Structure Corruption blue screen of death error, go for the next potential solution.

Run Blue Screen Troubleshooter:

Windows is aware of the fact that many people are suffering from the blue screen of death errors. To help with that, they have included a blue screen troubleshooter. It would be best if you gave that a try too.

  • Press Windows Key + I to open up the Settings app.
  • Then click on Update & Security.
  • Now click on click on the Troubleshoot tab in the left pane of the window.
  • On the right pane, you will see the Blue Screen option. Click on it and then click on the “Run the troubleshooter” button.

If you still see the Critical Structure Corruption BSOD error even after this, go for the next potential solution mentioned below.

Perform a clean boot:

Clean boot lets your computer boot up without any third-party programs. If you have this error due to a third-party program, the blue screen of death will not appear if you clean boot your computer.

  • Press Windows Key + R, and it will open up the Run dialog box.
  • Enter “msconfig” here and click on Ok.

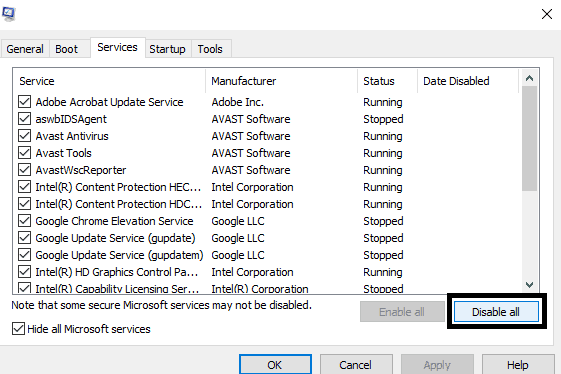

  • In the system configuration window, click on the “Services” tab.
  • Check the box next to “Hide all Microsoft services” and then click on Disable all.

  • Now click on the Startup tab, and then click on “Open Task Manager.”
  • In the Startup tab of Task Manager, right-click on each of the programs that show up and choose “Disable.”
  • Close the Task Manager and click on Ok in the Startup tab of the system configuration window.

Noe restart your computer. If you still see the Critical Structure Corruption BSOD error, go for the final solution mentioned below.

Clean install Windows 10:

This is the last solution that you should go for if none of the solutions mentioned above worked for you. Clean installing Windows 10 all over again will definitely get rid of the Critical Structure Corruption error in Windows 10. But you will lose all your configured settings and installed programs on your computer. You will have to install them all over again. If there are any specific files that you want to back up before the installation, you can upload that file to the cloud storage or move it to an external storage device(recommended).

Once everything is backed up, insert the Windows installation DVD or USB and restart your computer. Change the boot order in the BIOS menu and use your bootable device to boot into Windows. That will initiate the Windows installation process. Follow the on-screen instructions after that, and you will have your system running on Windows again without any errors. Remember to install the drivers right away after Windows boots up successfully.

These are the solutions for the Critical Structure Corruption BSOD error in Windows 10. If you have any questions or queries about this article, then comment down below, and we will get back to you. Also, be sure to check out our other articles on iPhone tips and tricks, Android tips and tricks, PC tips and tricks, and much more for more useful information.
