Poco C31 (Angelica) ISP Test Point, EMMC, Bypass FRP lock, Clear User Locks

Xiaomi Poco C31 was launched in India with Android 11 out of the box. The device features a 6.53-inch HD+ LCD display, 3GB or 4GB RAM RAM options. Poco C31 sports a triple rear camera setup with a 13 MP main camera, and two 2 MP additional cameras. On the front, the phone has a 5 MP selfie shooter.

In this guide, we will show you the real image of the UFS ISP pinout and test point for the Poco C31. By using the ISP PinOUT, you can easily restore the stock ROM, bypass FRP lock, or reset user data on your device via Z3X EasyJTag Box Tool or UFI toolbox.

Poco C31 Device Overview:

The Poco C31 features a 6.53-inches IPS LCD panel with a resolution of 720 x 1600 pixels and an aspect ratio of 20:9. It is a standard 60Hz panel. Under the hood, we have the MediaTek Helo G35 built on a 12nm manufacturing process. It is an octa-core processor with four Cortex-A53 cores clocked at 2.3 GHz and four Cortex-A53 cores clocked at 1.8 GHz. And for handling the graphics-intensive tasks, we have PowerVR GE8320.

In terms of optics, we gave a triple camera setup at the rear and a single selfie camera at the front. The triple rear setup consists of a 13MP primary sensor paired with an f/2.2 lens, a 2MP macro sensor paired with an f/2.4 lens, and a 2MP depth sensor paired with an f/2.4 lens. At the front, we get a 5MP sensor paired with an f/2.2 lens. Both the front and the rear setup is limited to 1080p video recording.

The smartphone is running on Android 10 out of the box with MIUI 12 skin on top. It has two storage variants with 3GB RAM + 32GB internal storage and 4GB RAM + 64GB internal storage. There is also a dedicated MicroSD slot for storage expansion. In terms of communications, we get Wi-Fi 802.11 a/b/g/n, Bluetooth 5.0, GPS, FM radio and MicroUSB 2.0. And for sensors, we get a rear-mounted fingerprint sensor, accelerometer, and proximity. There is a 5,000 mAh cell inside this smartphone that supports 10W fast charging. The smartphone is available in two color options: Royal Blue and Shadow Gray.

What is ISP PinOUT?

ISP or In-system programming also known as in-circuit serial programming (ICSP) for hardware that has a cross-reference of pins or contacts. By shorting the pins together, you can power or signal the logic board (motherboard) of an electronic device such as a mobile, computer. You will find the IS Pinout connection on the logic board of your device. Therefore, you will need to remove the back panel of the handset and follow the below image to locate the pinout.

Poco C31 (Angelica) UFS ISP Pinout Image:

Xiaomi Poco C31 (Angelica) ISP UFS PinOUT | Test Point

How to Flash Firmware Using UFI Tool Box

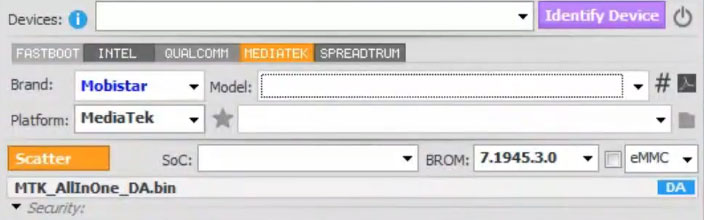

  1. Open UFI Android Toolbox Setup
  2. Select Mediatek Processor

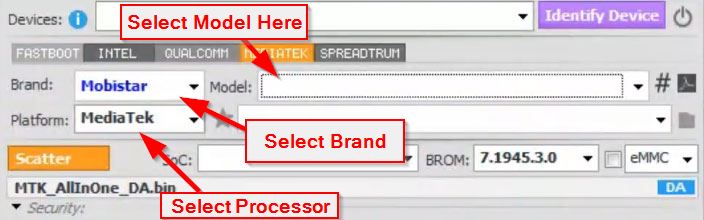

  3. Now you need to select the brand, platform, and model name of the device.

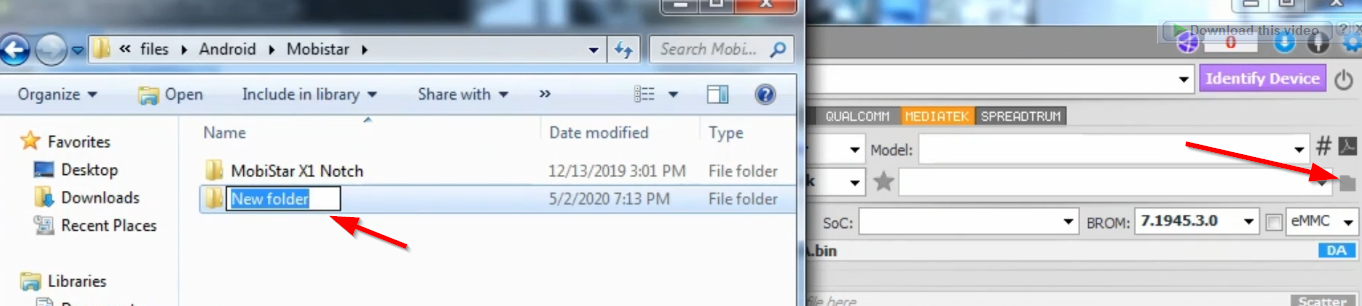

  4. Download the firmware from here and tap on the folder icon to create one inside.
  5. Now move the downloaded firmware file to the newly created folder.
  6. Once again, select the brand name and tap on the model to find your model.

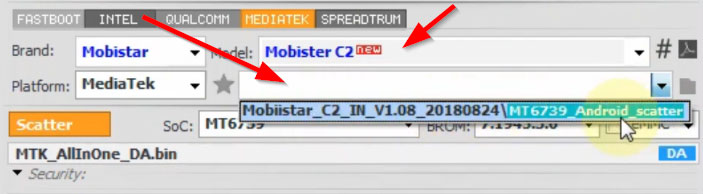

  7. After selecting the model, you will now select the folder locationUFI Select Firmware

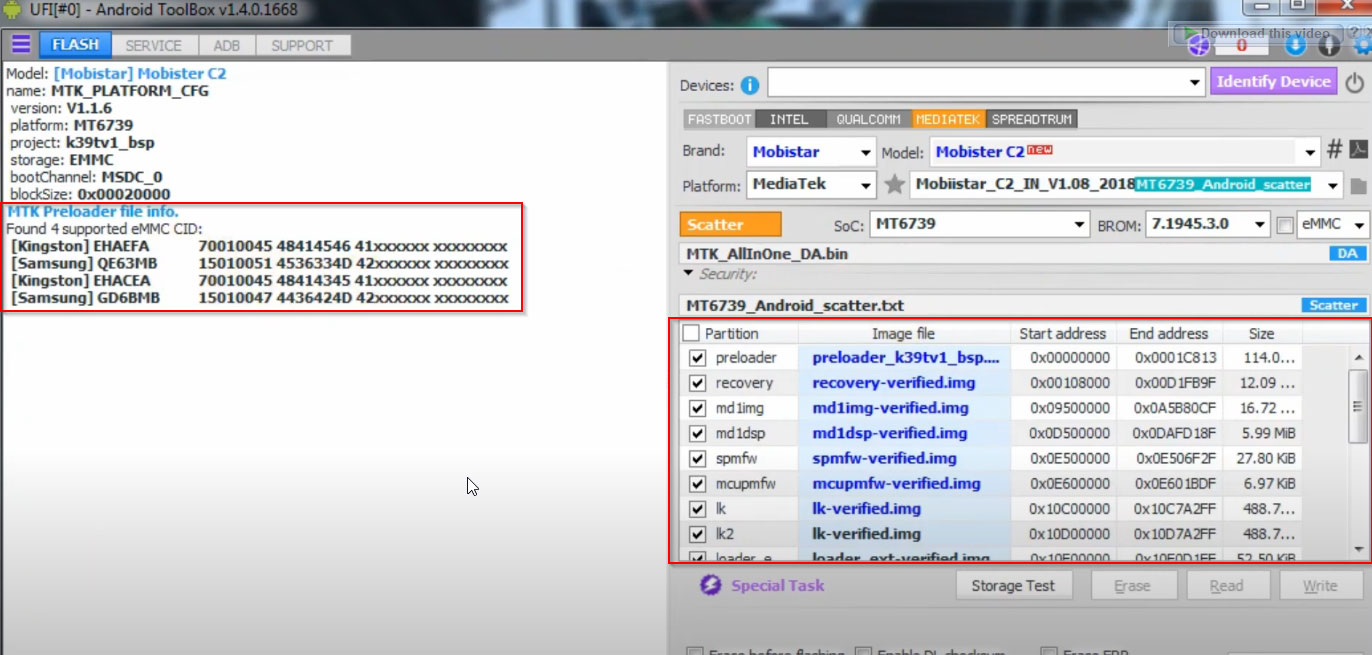

  8. Once you select the firmware folder, you will now be greeted with an information screen like this.

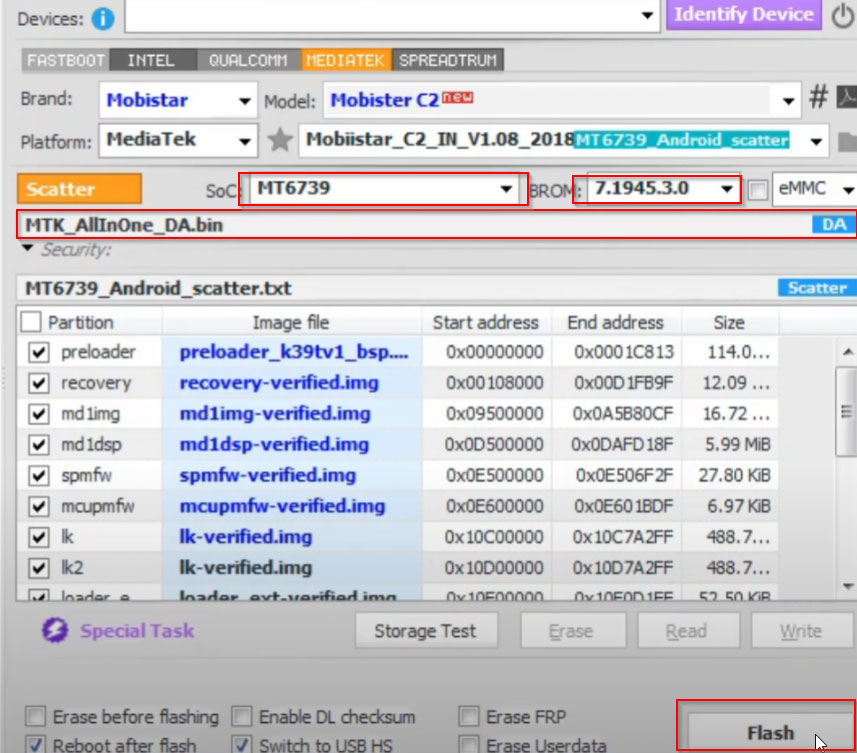

  9. Also, verify the processor model and DA file. If everything is ok, click the flash button at the bottom to start flashing.
  10. That’s it! You have now easily flashed the firmware on your Poco C31 device.

Bypass FRP Lock, Full Erase, Bypass Security, and More:

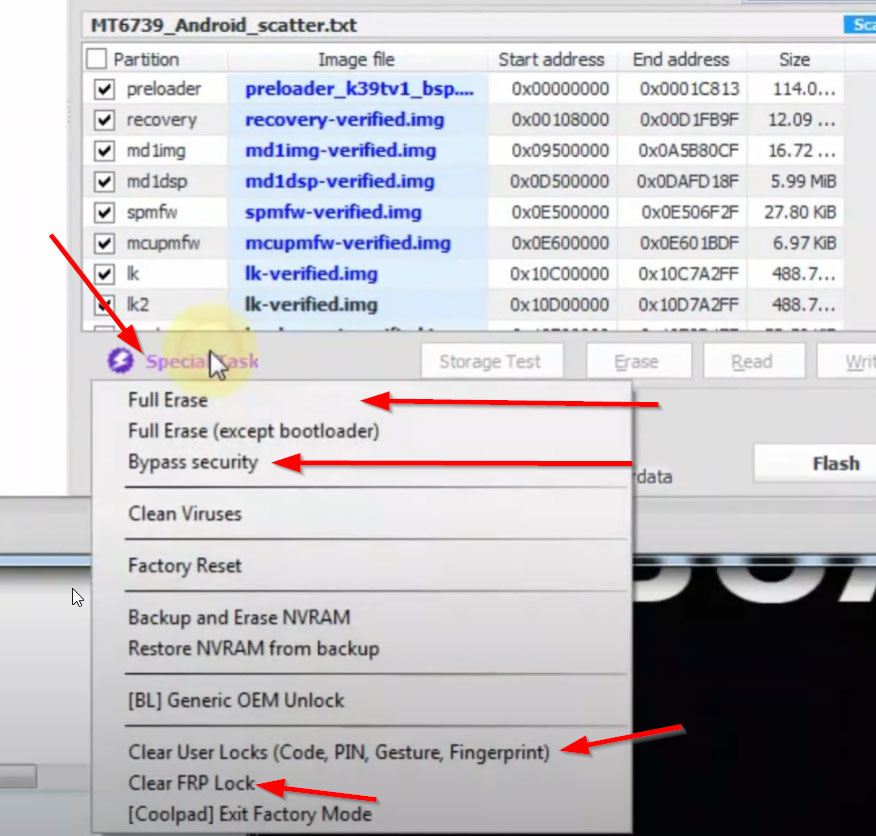

Follow the above method till the 8th step, now before hitting the flash button, tap on the Identify device menu and then tap on the Special Task option.

Special Task drop-down will pop up with many new options. You can tap the bypass FRP lock, security, clear user locks, and many more.

Clear User Locks (Code, PIN, Gesture Lock, Fingerprint):

By following the above method, you can also clear the user locks on your Poco C31 such as fingerprint lock, gesture lock, PIN, codes, and many more.

I hope this guide was helpful to find the Poco C31 UFS ISP Pinout Testpoint.
