Realme 6i RMX2040 / RMX2002 ISP PinOUT | Test Point

Realme 6i smartphone was launched in March 2020 with Android 10 out of the box. The device sports a 6.50-inch touchscreen display with MediaTek Helio G80 Chipset.

In this guide, we will show you the real image of the ISP pinout and test point for the Realme 6i RMX2040 / RMX2002. By using the ISP PinOUT, you can easily restore the stock ROM, bypass FRP lock, or reset user data on your device via UFi Box.

What is ISP PinOUT?

ISP or In-system programming also known as in-circuit serial programming (ICSP) for hardware that has a cross-reference of pins or contacts. By shorting the pins together, you can power or signal the logic board (motherboard) of an electronic device such as a mobile, computer. You will find the IS Pinout connection on the logic board of your device. Therefore, you will need to remove the back panel of the handset and follow the below image to locate the pinout.

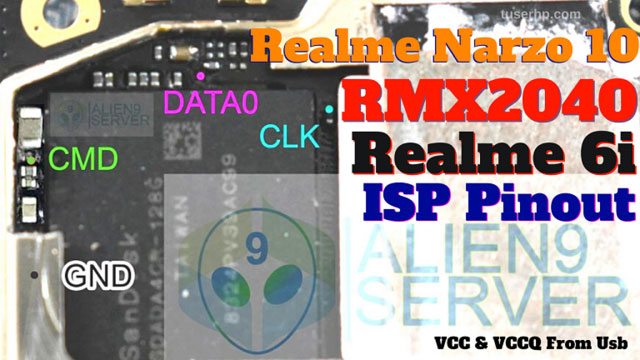

Realme 6i RMX2040 / RMX2002 ISP Pinout Image:

Realme 6i RMX2040 ISP PinOUT

I hope this guide was helpful to find the Realme 6i RMX2040 / RMX2002 ISP Testpoints.

Realme 6i Specifications:

The Realme 6i is powered by a MediaTek Helio G80 octa-core processor coupled with 3 or 4 GB of RAM. The phone has storage options to choose between 64 and 128 GB along with a dedicated memory card slot to expand even more. It has a Mali-G52 MC2 GPU for gaming. The phone is powered by a massive 5000 mAh non-removable battery, which can easily last a day or more. It comes with an 18w fast charging as well.

Advertisements

The phone is built on a plastic frame and has a plastic body. At the front, Realme 6i has a 6.5 inches IPS LCD display with a 720p resolution having a pixel density of around 270 pixels per inch (PPI). The screen-to-body ratio is around 82%, with an aspect ratio of 20:9. This screen is protected by Corning Gorilla Glass 3.

The Realme 6i runs on Android 10 based on Realme UI, which is Realme’s own Android skin. The phone has DUAL SIM support as well. Realme 6i comes with a face unlock system as well as a rear-mounted fingerprint scanner. The phone is said to be splash-proof and weighs around 199 grams with a thickness of 9mm. The phone also has a 3.5mm headphone jack, and it uses a USB Type-C port for charging and USB connectivity.

The Quad-camera is the new norm for optics. Realme 6i is no exception. It also features a quad-camera setup at the back consisting of a 48 MP main sensor with an 8MP ultra-wide lens followed by a 2 MP Macro lens and, at the end, a 2 MP depth sensor. The phone also features a LED flash along with HDR and Panorama shooting options as well. This camera can record at 1080p @30 fps along with a gyro-based EIS for stability. At the front, we have a 16 MP camera for selfies.

For connectivity, it has WIFI 802.11 b/g/n, Bluetooth 5.0, USB OTG, and GPS for navigation. The phone features almost all the basic sensors required like an accelerometer, gyro, proximity, and compass. The phone comes in Cream white and Green Tea color.
