Fix – 0x80190005 Error Code When Attempting to Sign in on Xbox

The 0x80190005 error code has been known to be encountered by Windows 10 users while trying to log into the Xbox app. Some users have also come across it while trying to make a PIN for their Microsoft account. An error message claiming “Something went wrong, please try again later” is seen with this error code as well.

In this all-new guide, we will help you know all about the causes behind the error code 0x80190005, and potential fixes for the same.

Fix - 0x80190005 Error Code When Attempting to Sign in on Xbox

What are the underlying causes behind the error code 0x80190005?

There are a number of reasons behind the appearance of the error code 0x80190005. We have listed all of them below.

  • Inconsistency of the Common Store – This is one of the most likely reasons behind this error code. It is caused due to a defective update of the Store. If this is the case with you, it can be fixed by opening up the Windows Store Apps Troubleshooter and installing the fix mentioned there.
  • There are corrupted files in the NGC folder – This is a likely cause if you are encountering this error code when trying to delete or set up a PIN for your Microsoft account. In that case, you can possibly rectify this problem by going to the NGC folder and manually removing all of its contents. Then go back and check if the issue has been resolved. If it hasn’t, then you can also try creating a new local account and using it when creating the PIN.
  • There is corrupt data in the Store’s cache folder – This has been known to happen to some people. It occurs because of a systemic problem that occurs in a lot of UWP software apart from the Xbox app. In case you come across this error on a number of UWP programs, you can possibly rectify it by doing a reset of the Windows Store cache. This can be done in the elevated Command Prompt window.
  • There is corrupt data in the Windows Update cache folder – Although this is a more uncommon cause, we cannot entirely rule it out. If it happens, it can cause trouble while signing in to your Microsoft account. You can possibly rectify this problem by clearing the Windows Update cache from an elevated CMD window.
  • Your Xbox app cache is becoming corrupt – This could be the reason behind the error code if you only encounter it when you try to log into the Xbox app using your Microsoft account, but the latter shows no issues on your console. This problem has been known to turn up after an abrupt shutdown of the device. You will be able to fix it by doing a factory reset of your Xbox app.
  • Your Xbox One profile is corrupt – In case this error code is turning up when you try to sign in to the Xbox One console using your Xbox account, which is linked to your Microsoft account, you can try this solution. Delete and then re-add your Xbox account using the “Remove Accounts” menu. Hopefully, doing this will remove any corrupted files that are behind this problem.
  • Some of the system files are corrupted – This could also be a possible reason, and unfortunately, it cannot be corrected so easily. You will have to carry out a clean install or repair install if this is the issue.

How to Fix the Error Code 0x80190005

Now that we have seen the potential reasons behind the error code 0x80190005 let us find out more about how to fix it.

  1. Use the Windows Store Apps Troubleshooter

You should try this solution first of all, in order to confirm whether the error code is being generated by an issue that your Windows version can correct by itself. Running the Windows Store Apps troubleshooter helped a number of people correct the issue that was interfering with the Xbox app.

Advertisements

In order to try out this fix, you can follow the instructions given below:

  • Press the Windows Key + R, which will bring up the Run dialog box. Type in ms-settings:troubleshooter there and press. This will bring up the Troubleshooting tab in the Settings section.
  • Scroll down to “Get up and Running” portion and expand the Windows Store Apps box by clicking on it. Locate the contextual menu and click “Run the Troubleshooter.”
  • The scan will likely take some time, so wait for it to be completed. In case an issue with your Store apps is discovered, the application will likely ask if you want to fix it. Click on “Apply this Fix” and do whatever you are asked to.
  • Wait for the repair process to be completed, and then restart your PC. See if the error code has been fixed.

In case this solution does not work, keep reading below.

Reset your Xbox app

In case this error code is turning up whenever you attempt to log into your Microsoft account within the Xbox app, it is possible that a rather commonplace Xbox app glitch that appears after an abrupt machine shutdown is manifesting itself. In this case, you should try to reset the Xbox through the GUI Settings menu. Proceed to reboot your console, and your Xbox app will be reverted to its original vanilla version. Update it if required. Don’t worry; you will not lose any purchased items or game saves by doing this.

Here’s how you can do this on Windows 10:

Advertisements
  • Press the Windows key + R to open up the Run window and type ms-settings:appsfeatures inside the dialog box. Hit Enter and bring up the Apps & Features menu.

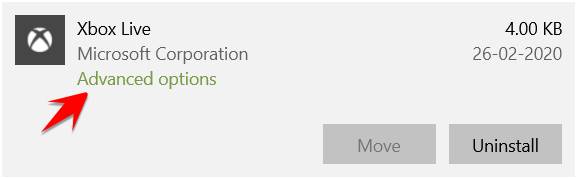

  • Scroll down to the right section, go through the list of installed applications, and find the Xbox app. Click it and select “Advanced Options” that turn up.Fix - 0x80190005 Error Code When Attempting to Sign in on Xbox

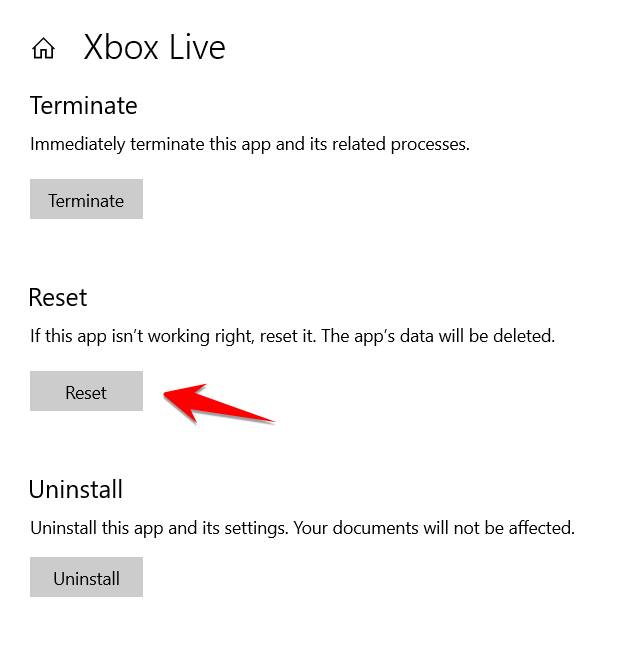

  • In the menu that comes up, scroll down to the Reset tab and click on the Reset button to revert the Xbox Live app to its factory settings.Fix - 0x80190005 Error Code When Attempting to Sign in on Xbox
  • When asked to confirm the command, click on the Reset button once again. Wait patiently for the process to be completed.
  • Now reboot your device and see if the error has been fixed.

If the error code continues to show up, read on for more potential solutions.

Reset the Windows Store

The Xbox app has been developed for the UWP (Universal Windows Platform) and is thus reliant on the Windows Store component. Thus it can be affected if the Windows Store cache gets corrupted or inflicted with any other kind of problem. It can happen if Windows Security or your Antivirus quarantines some programs that the UWP depends on. You will be able to fix this by resetting the Microsoft Store and clearing its cache. That will hopefully replace any corrupt files with proper ones and thus do away with the 0x8019005 error code.

Follow the given steps to follow this method:

Advertisements
  • Press the Windows key + R and bring up the Run window. Type in cmd and then press Ctrl + Shift + Enter to bring up an elevated CMD prompt. When the User Account Control (UAC) asks you to confirm to grant administrative privileges, click Yes.
  • In the elevated Command Prompt, type in exe and hit Enter to reset the Windows Store, along with all the associated programs.
  • Wait for the command to be executed, and then restart your system to see if the error message has been fixed.

Advertisement

If this does not work, read on for more potential solutions.

Clear the Windows Update Cache

The 0x80190005 error code can possibly be triggered by a corrupted update that the Windows Update is being unable to install. There have been reports that clearing the Windows Update cache and rebooting the system has fixed the issue for some people. This is because doing this will remove any corrupted updates potentially interfering with the Xbox app.

Here is how you can go about to do this:

  • Press the Windows Key + R to bring up the Run window, and type in cmd Press Ctrl+Shift+Enter to bring up the elevated CMD prompt. When prompted by the User Account Control (UAC) to grant administrative privileges, click on Yes.
  • In the Admin Command Prompt, type in the following commands. Make sure to press Enter after each one to interrupt any associated Windows Update programs:
net stop wuauserv
net stop cryptSvc
net stop bits
net stop msiserver

These commands serve to stop the Windows Update, Cryptographic and BITS services, and the MSI installer.

  • After this, proceed to enter the following commands to clean up and rename the Catroot2 and Software Distribution folders.
ren C:\Windows\System32\catroot2 Catroot2.old
ren C:\Windows\SoftwareDistribution SoftwareDistribution.old

Keep in mind that these folders contain update files and other necessary files needed by the WU program. You cannot delete them so easily, so the best option is to create new harmless equivalents to rename them.

  • Now proceed to enter the following commands. Remember to hit Enter after each of them, in order to turn back on the services we had disabled in one of the previous steps.
net start wuauserv
net start cryptSvc
net start bits
net start msiserver
  • After these services have been restarted, launch the Xbox app and see if the error code has been removed.

If this still does not work, read on for more potential fixes.

Re-add your Xbox account (Xbox Console)

If you happen to be coming across the 0x80190005 error code on your Xbox One console, it is likely that certain corrupted files in your Xbox Profile’s temp folder are possibly corrupted. These could be preventing you from using your account despite being properly signed in. In that case, you can rectify this problem by deleting your local profile and signing in freshly to clean up the corrupted temp data. Several users have reported this step to be working.

Just follow these steps in order to carry out this solution:

  • Close down any other game or program running on your Xbox One console, and go to the main dashboard.
  • Hit the Xbox button on your controller, and in the guide menu that turns up, go to the Settings section.
  • Choose the Account tab and, in the menu on the right side, click on Remove Accounts.
  • Click on the account you want to remove, and confirm it.
  • After the process has been completed, carry out a hard reset to make sure that the temp file and power capacitors have been cleared. You can do this by pressing and holding down the power button of your console for 10 seconds until you see the front LEDs flashing and hear the fans stopping to work. It is also advised to unplug it from its socket, to make sure that the power capacitors are fully emptied.
  • Now turn on your console once again and log in to your account.

Check if the error code has been resolved or not. If this solution does not work, keep reading for more potential fixes.

Delete the NGC folder if required

If you happen to be coming across the error code 0x80190005 while attempting to create a PIN or removing an existing PIN from your Microsoft account, you can be facing an issue of corruption in the NGC folder. You can fix this by going to the NGC folder yourself and clearing its contents manually. Then reboot your system and set up new PINs or delete the present one.

You can follow the given steps in order to carry out this process:

  • Make sure that you are signed in with administrative privileges. They are needed to clear the contents of the NGC folder.

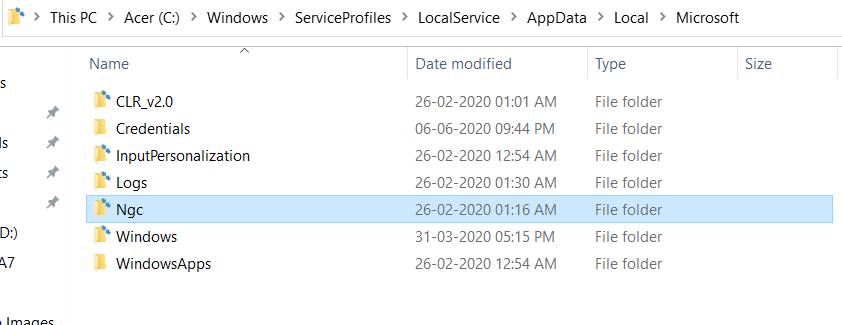

  • Bring up the File Explorer, enter this location in the navigation bar, and hit Enter to visit the NGC folder.

C:\Windows\ServiceProfiles\LocalService\AppData\Local\Microsoft\NGC

Fix - 0x80190005 Error Code When Attempting to Sign in on Xbox

  • Press Ctrl+A to select all the files in the NGC folder, and hit the Delete button on your keyboard to empty the folder.
  • Now repeat whatever you were doing with your PIN earlier, and see if the error code is coming up or not.

If this still does not fix the issue, read on for more potential solutions.

Switch to a Local account if possible

In case you are coming across the error code 0x80190005 while trying to set up a PIN for your account, and you could not fix it by clearing the NGC folder, then you can try using a local account. Although it has some issues of its own, it has also worked for a lot of users as well.

Given below are the steps you can follow to do this:

  • Press the Windows Key + R to bring up the Run window. Type in ms-settings:emaillandaccounts in the Run text box. Hit Enter to bring up the Email & Accounts tab of the Settings portion in Windows 10.
  • Now click on Family & Other Users on the left side of the right section of the screen.
  • Scroll down to the Other Users sub-menu and click on Add Someone Else to this PC.
  • Now click on “I don’t have this person’s sign-in information” when questioned.
  • Click on “Add a user without a Microsoft account.”
  • Now add a name and password associated with your newly created local account. Click on Next to successfully create the local account.
  • Reboot your PC and set up a PIN for your freshly prepared local account. See if the error code has been fixed.

If it still does not work, then scroll down for another potential solution.

Carry out a Repair Install

In case you are facing this problem on a system with Windows 10 while trying to set up a PIN or signing in with the Xbox app, and none of the above fixes worked for you, then you might be dealing with a particularly troublesome kind of corruption issue that cannot be fixed easily. In this scenario, your best bet is to reset every concerned Windows component. You can do this by two methods:

  • The first, and most advisable, the method is to carry out a Repair Install. This will only reset Windows components without affecting any of your other files. However, for this, you will have to use a compatible installation media.
  • The second method is to carry out a Clean Install. You must back up your data before doing this because it will result in all the data in your OS drive to be wiped out. However, you will not be required to use installation media.

We hope our guide helps you fix the 0x80190005 error code. If you liked our guide, don’t forget to check out our other Windows Guides, Gaming Guides, Social Media, iPhone Guides, and Android Guides to read more. Subscribing to our YouTube Channel will surely help you win our $150 giveaway contest. If you have any questions or feedback, comment down with your name along with the email ID, and we will reply shortly. Thank you.
