Good news for all the Realme U1 unit users as the Realme U1 ISP PinOUT to Hard Reset / FRP Bypass is now available. You can easily get the ISP PinOUT connection of the Realme U1 (RMX1831, RMX1833) by following the full guide below along with images. By using the ISP PinOUT, you can easily bypass FRP lock or reset user data on your device via UFi Box. Check out the guide below.
Page Contents
Realme U1: Overview
Realme U1 was announced in December 2018 which sports a 6.3-inch IPS LCD display with a screen resolution of 1080 x 2340 pixels. The device has an aspect ratio of 19:5:9 and a screen-to-body ratio of 83.9 %.
The device is powered by an Octa-core (4×2.1 GHz Cortex-A73 & 4×2.0 GHz Cortex-A53) with Mediatek Helio P70 (12nm) chipset coupled with 3/4GB of RAM and 32/64GB of internal storage. It also supports an external memory card with up to 256 GB microSD. The device came out of the box with Android 8.1 Oreo under FColorOS 5.2 and backed by a 3500 mAh battery (Non-removable).
As far as the camera concerned, the device has a dual-camera setup with 13MP + 2MP primary sensors and a selfie camera with a 25MP lens. Other connectivity option includes 4G-VoLTE, GPS, Glonass, Bluetooth, Mobile Hotspot, accelerometer, proximity sensor, and compass. etc. The Realme U1 comes with a face unlock feature.
What is ISP PinOUT?
ISP or In-system programming also known as in-circuit serial programming (ICSP) for hardware that has a cross-reference of pins or contacts. By shorting the pins together, you can power or signal the logic board (motherboard) of an electronic device such as a mobile, computer. You will find the IS Pinout connection on the logic board of your device. Therefore, you will need to remove the back panel of the handset and follow the below image to locate the pinout.

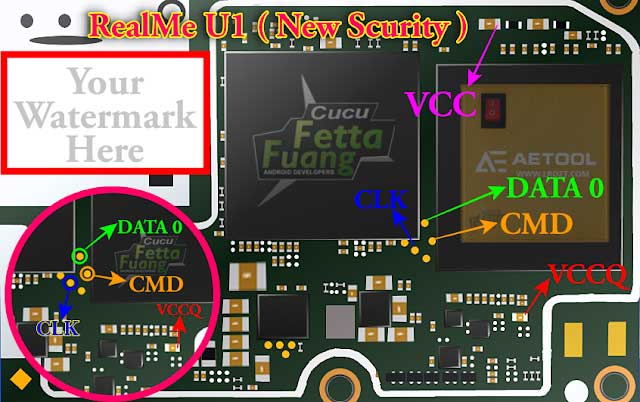

Realme U1 ISP Pinout Image:
Required Downloads
Pre-Requirements:
- This guide is for Realme U1 (RMX1831, RMX1833) variant only.
- You will need a Windows PC/Laptop and a USB cable.
Steps to Bypass FRP Lock on Realme U1
- Open the back panel of the device at first.
- Connect the wire with the correct ISP Pinout.
- Then connect the ISP Pinout to the UFi Box and connect your device via USB cable to the PC.
- Go to the Device Manager on your PC.
- You will see your device in the list > run the UFi Box and locate the scatter file.
- Go to the user Partition / Special Task and click on Reset FRP on the UFI Box.
- You’re done.
Steps to Hard Reset Realme U1 (Bypass Pattern Lock)
- Remove the back panel of the device and connect the wire to the ISP Pinout.
- Next, connect the correct ISP Pinout to the UFi Box.
- Connect your Realme U1 to the PC via a USB cable.
- Head over to the PC and open Device Manager.
- If your device is located there, run the UFi Box.
- Locate the scatter file > go to the Partition / Special Task on the UFI Box.
- Click on Factory Reset.
- Enjoy!
That’s it, guys. We hope this guide was helpful to you in order to bypass the FRP Lock or perform a factory reset on your Realme U1 handset. If you’ve any queries, let us know in the comments below.
