Huawei Y9 2019 was launched as a new mid-range offering by the company features a 6.5-inch display along with a traditional notch, dual rear and front cameras, HiSilicon Kirin 710 SoC, and a 4,000mAh battery. If you’re one of the Huawei Y9 2019 (model no JKM-LX1, JKM-LX2) users and want to find out Test Point to Remove FRP lock, Huawei ID, User Lock, and Firmware Flashing then follow this article.
Here we’ll gonna share how you can find out the Huawei Y9 2019 JKM-LX1, JKM-LX2 Test Point, or get into the Download Mode (Emergency Download Mode) so that you can perform multiple advanced level tasks by yourself. You can basically use this test point in any box-like tools such as the Sigma Key, MRT key tool, UFI, UMT, Medusa. All you need is to just shoot the gold point to the ground and then connect a USB cable.
Page Contents
Why Do We Need TestPoint?
- Install the firmware file on Huawei Y9 2019.
- You can remove Huawei ID using Test Point
- Repair IMEI and NVRAM using it
- Restore or Unbrick dead Huawei Y9 2019 by flashing firmware.
- Easy to remove FRP lock or screen lock
Where to Find Test Point in Huawei Y9 2019
- First, Download and Install Huawei USB Drivers on Windows PC.
- Remove the back panel of the Huawei Y9 2019 device carefully. Try not to damage hardware parts.

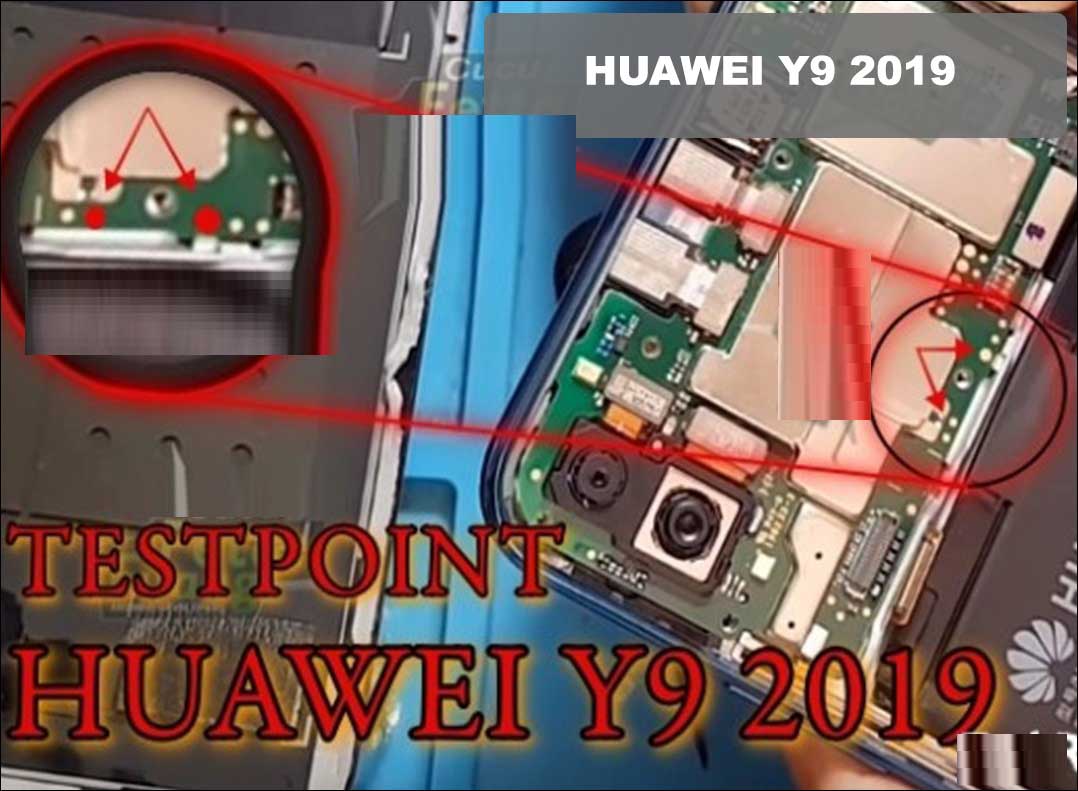

- Now, check the screenshot below to find out the Huawei Y9 2019 Test Points.
How to Remove Huawei Y9 2019 JKM-LX1, JKM-LX2 FRP Lock
You can easily use the EFT dongle, UMT dongle, Octopus FRP tool, MRT key tool, etc to remove FRP (Factory Reset Protection) tool and bypass the screen lock (pattern/pin/password) from the Huawei Y9 2019.
Otherwise, you can try other tools to use the test point to boot your phone in an emergency download mode by removing the battery and short test point to the ground & inserting a USB cable.
So, if you’re interested in booting your Huawei Y9 2019 JKM-LX1, JKM-LX2 device into the Download Mode to flash the Stock Firmware then this article is for you. While if you want to install the software on bootloader-locked Huawei Y9 2019 JKM-LX1, JKM-LX2 then you’ll have to boot it into the EDL mode then you can flash the stock firmware.
How to Remove Huawei ID on Huawei Y9 2019 JKM-LX1, JKM-LX2 FRP Lock
- Download and install the SigmaKey Software on your computer.
- Connect your device to PC using a USB Cable in upgrade mode
- Select the Serial Port as DBA Adaptor Port.
- Select the Software Testpoint On Off
- Now load the downloaded firmware package “UPDATE.APP”
- The software will start the flashing process. Wait for a few seconds or minutes to complete the process on your Huawei Y9 2019. Do not remove your device.
- After the process, the device will enter factory mode.
- Now you can connect your device again by removing and connecting the USB cable again.
- Now under serial port, make sure you select USB (autodetect)
- Select Authorize has Huawei
- Tap on Remove Huawei ID.
- The process will begin to remove the firmware protection, also called FRP lock.
- After successfully removing the Huawei ID, you have to set the testpoint OFF. This will again revive the phone from factory mode to normal phone mode.
- Select the Serial Port as USB (autodetect), Authorize with device model, and then tap the Software Testpoint on/off.
- After completing the process, your device will be back to normal
That’s it, guys. We hope this guide was helpful to you. For additional queries, you can comment below.
Huawei Y9 2019 Specifications:
Huawei Y9 2019 features a 6.5 inches IPS LCD display with a screen resolution of 1080 x 2340 pixels. The smartphone is powered by an Octa-core 4×2.2 GHz Cortex-A73 & 4×1.7 GHz Cortex-A53 Hisilicon Kirin 710 12 nm processor coupled with 4/6GB of RAM. The phone packs 64/128GB internal memory which can also be expanded up to 400GB via microSD card. The camera on the Huawei Y9 2019 comes with a Dual 16MP + 2MP LED flash rear camera and also a 13MP + 2MP depth sensor front shooting camera.
Huawei Y9 2019 runs on Android 8.1 Oreo with EMUI 8.2 and a Non-removable Li-Ion 4000 mAh battery with fast charging. It also has a Fingerprint sensor on the back. The handset supports a dual sim with 4G on both slots. It comes with connectivity options such as Bluetooth, Wifi, USB OTG, FM, 3G, and 4G.
