Vivo U10 ISP PinOUT to Hard Reset, FRP Bypass, eMMC [PD1928F ]

The good news for all the Vivo U10 unit users as the Vivo U10 ISP PinOUT to Hard Reset / FRP Bypass is now available. You can easily get the ISP PinOUT connection of the Vivo U10 (PD1928F) by following the full guide below along with images. By using the ISP PinOUT, you can easily bypass FRP lock or reset user data on your device via UFi Box.

Also Read: Vivo U10 PD1928F Firmware Flash File

Vivo U10 Device Overview:

Vivo U10 was announced in September 2019 which sports a 6.35-inch IPS LCD display with a screen resolution of 1544 x 720 pixels with 268 PPI pixel density. The device is protected by Scratch-resistant glass.

The device is powered by a Qualcomm Snapdragon 665 chipset coupled with 3/4GB of RAM and 32/64GB of internal storage. It also supports a 256GB external memory card. The device came out of the box with Android 9.0 Pie under Funtouch 9.1 and was backed by a 5000 mAh battery (Non-removable).

As far as the camera is concerned, the device has a Triple-camera setup with 13MP + 8MP + 2MP primary sensors and a selfie camera with an 8MP lens. Other connectivity option includes 4G-VoLTE, GPS, Glonass, Bluetooth, Mobile Hotspot, accelerometer, ambient light sensor, gyroscope, proximity sensor, and compass/ magnetometer. etc. The Vivo U10 comes with a rear fingerprint sensor feature.

What is ISP PinOUT?

ISP or In-system programming also known as in-circuit serial programming (ICSP) for hardware that has a cross-reference of pins or contacts. By shorting the pins together, you can power or signal the logic board (motherboard) of an electronic device such as a mobile, computer. You will find the IS Pinout connection on the logic board of your device. Therefore, you will need to remove the back panel of the handset and follow the below image to locate the pinout.

Advertisements

Vivo U10 ISP Pinout Image:

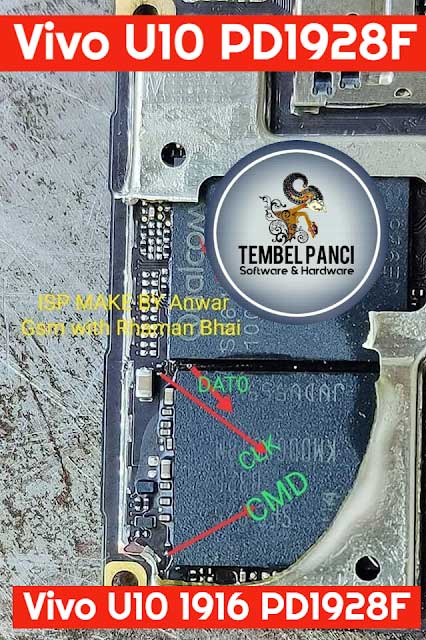

Vivo U10 1916 PD1928F eMMC Pinout

Warning!


GetDroidTips will not be responsible for any internal/external damages to the device that may happen while/after following this guide.

Required Downloads

Pre-Requirements:

  • This guide is for Vivo U10 (PD1928F) variant only.
  • You will need a Windows PC/Laptop and a USB cable.

Steps to Bypass FRP Lock on Vivo U10

  • Open the back panel of the device at first.
  • Connect the wire with the correct ISP Pinout.
  • Then connect the ISP Pinout to the UFi Box and connect your device via USB cable to the PC.
  • Go to the Device Manager on your PC.
  • You will see your device in the list > run the UFi Box and locate the scatter file.

Oppo K1 ISP PinOUT to Hard Reset / FRP Bypass

  • Go to the user Partition / Special Task and click on Reset FRP on the UFI Box.
  • You’re done.

Steps to Hard Reset Vivo U10 (Bypass Pattern Lock)

  • Remove the back panel of the device and connect the wire to the ISP Pinout.
  • Next, connect the correct ISP Pinout to the UFi Box.
  • Connect your Vivo U10 to the PC via a USB cable.
  • Head over to the PC and open Device Manager.
  • If your device is located there, run the UFi Box.

Oppo K1 ISP PinOUT to Hard Reset / FRP Bypass

  • Locate the scatter file > go to the Partition / Special Task on the UFI Box.
  • Click on Factory Reset.
  • Enjoy!

That’s it, guys. We hope this guide was helpful to you in order to bypass the FRP Lock or perform a factory reset on your Vivo U10 handset. If you’ve any queries, let us know in the comments below.
