Honor 8 Pro DUK-L09, DUK-AL20 Test Point, Bypass Huawei ID and FRP

Huawei Honor 8 Pro was launched in the year 2017 which came out of the box with Android 7.0 Nougat. It is powered by Kirin 960 processor. But if you’re one of the Huawei Honor 8 Pro DUK-L09, DUK-AL20 users and want to find out Test Point to Remove FRP lock, Huawei ID, User Lock, and Firmware Flashing then follow this article.

Here we’ll gonna share how you can find out the Huawei Honor 8 Pro DUK-L09, DUK-AL20 Test Point, or get into the Download Mode (Emergency Download Mode) so that you can perform multiple advanced level tasks by yourself. You can basically use this test point in any box-like tools such as the Sigma Key, MRT key tool, UFI, UMT, Medusa. All you need is to just shoot the gold point to the ground and then connect a USB cable.

Why Do We Need TestPoint?

  • Install the firmware file on Huawei Honor 8 Pro.
  • You can remove Huawei ID using Test Point
  • Repair IMEI and NVRAM using it
  • Restore or Unbrick dead Huawei Honor 8 Pro by flashing firmware.
  • Easy to remove FRP lock or screen lock

Where to Find Test Point in Huawei Honor 8 Pro

  • First, Download and Install Huawei USB Drivers on Windows PC.
  • Remove the back panel of the Huawei Honor 8 Pro device carefully. Try not to damage hardware parts.
  • Now, check the screenshot below to find out the Huawei Honor 8 Pro Test Points.

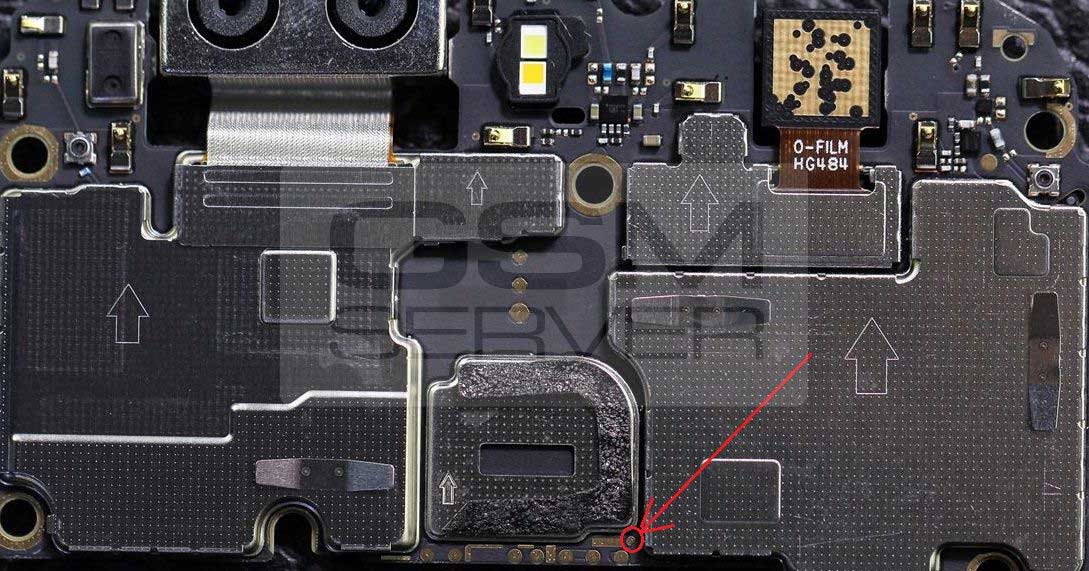

Honor 8 Pro DUK-L09, DUK-AL20 Test Point

How to Remove Huawei Honor 8 Pro DUK-L09, DUK-AL20 FRP Lock

You can easily use the EFT dongle, UMT dongle, Octopus FRP tool, MRT key tool, etc to remove FRP (Factory Reset Protection) tool and bypass the screen lock (pattern/pin/password) from the Huawei Honor 8 Pro.

Otherwise, you can try other tools to use the test point to boot your phone in an emergency download mode by removing the battery and short test point to the ground & inserting a USB cable.

So, if you’re interested in booting your Huawei Honor 8 Pro DUK-L09, DUK-AL20 device into the Download Mode to flash the Stock Firmware then this article is for you. While if you want to install the software on bootloader-locked Huawei Honor 8 Pro DUK-L09, DUK-AL20 then you’ll have to boot it into the EDL mode then you can flash the stock firmware.

How to Remove Huawei ID on Huawei Honor 8 Pro DUK-L09, DUK-AL20 FRP Lock

  1. Download and install the SigmaKey Software on your computer.
  2. Connect your device to PC using a USB Cable in upgrade mode
  3. Select the Serial Port as DBA Adaptor Port.
  4. Select the Software Testpoint On Off
  5. Now load the downloaded firmware package “UPDATE.APP”
  6. The software will start the flashing process. Wait for a few seconds or minutes to complete the process on your Huawei Honor 8 Pro. Do not remove your device.
  7. After the process, the device will enter factory mode.
  8. Now you can connect your device again by removing and connecting the USB cable again.
  9. Now under serial port, make sure you select USB (autodetect)
  10. Select Authorize has Huawei
  11. Tap on Remove Huawei ID.
    Sigma Key Remove Huawei ID
  12. The process will begin to remove the firmware protection, also called FRP lock.
  13. After successfully removing the Huawei ID, you have to set the testpoint OFF. This will again revive the phone from factory mode to normal phone mode.
  14. Select the Serial Port as USB (autodetect), Authorize with device model, and then tap the Software Testpoint on/off.
  15. After completing the process, your device will be back to normal

That’s it, guys. We hope this guide was helpful to you. For additional queries, you can comment below.
