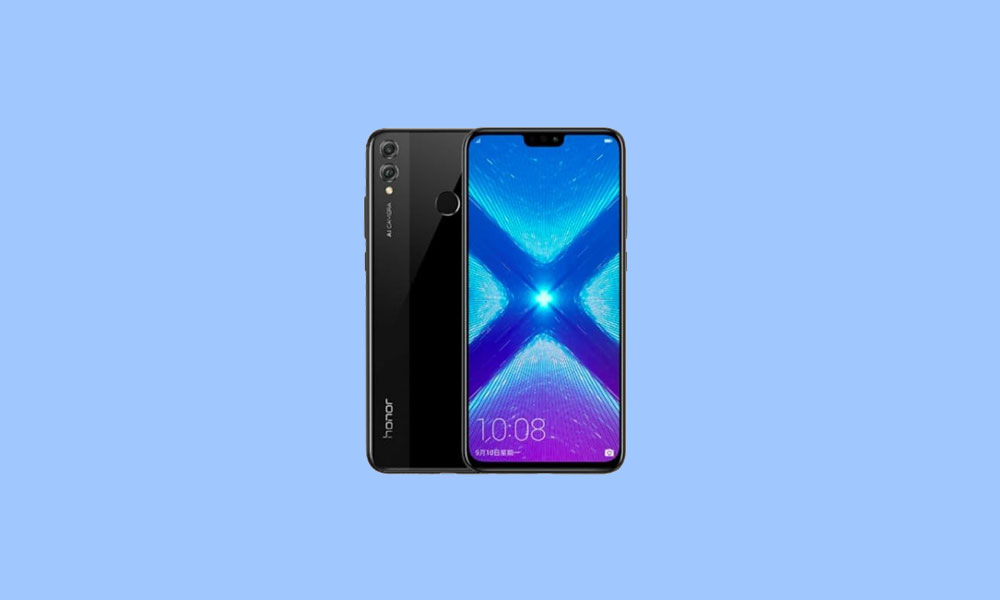

Huawei Honor 8X JSN-L21 Firmware Flash File (Stock ROM)

Steps to Flash Firmware File on Huawei Honor 8X

Now, before we get straight to the installation guide, make sure to follow the prerequisites section below and make sure you download the flash tools and drivers on your PC.

Requisites

The stock firmware provided here is for Huawei Honor 8X (JSN-L21). Do not flash it on any other phone.
We recommend having at least a 50% charge on your device before installing the firmware.
A PC or Laptop.
Make sure to take a backup of your device data. You can back up your phone Without Root.
Alternatively, if you have TWRP Recovery installed on your device, you can create Nandroid Backup through TWRP Recovery.
Download Huawei Multi-Download Tool on your PC and install it.
Download Huawei USB Drivers on your PC
You will also require to Download Huawei Handset Product Line Driver and install it.

Disclaimer

GetDroidTips will not be responsible for bricking, hardware, or any kind of software problems arising on your while you follow this guide to install stock ROM on your phone. First, understand the tutorial and then follow it at your own risk.

Stock Firmware Information

Device Supported: Huawei Honor 8X
Model: JSN-L21
Android OS: Android 10.0
Processor: Kirin 710F
File: Software Update
Gapps File: Included

Now, grab the stock firmware for the Huawei Honor 8X from the link below.

Download Flash Files

Flash File Name: JSN-L21 JOHNSON-L21C 8.2.0.101(C432CUSTC432D1)
OS: Android 10.0
File Size: 4 GB
Download Link: Click Here

Flash File Name: JSN-L21 hw cea Johnson-L21C 9.1.0.234(C461E2R1P1T8)
OS: Android 9.1
File Size: 4 GB
Download Link: Click Here

Upgrade using OTG Adapter or OTG Cable+USB Memory

Download the dload firmware from the above link, extract it and copy the same to your USB memory stick. Make sure it is formatted as exFat or NTFS.
Factory reset your device from the Settings option (optional). Once done, power it off.
Now connect the memory stick using an OTG cable to your device. Make sure it has all the extracted files from the dload firmware.
Press the Power button and as it vibrates and shows the Huawei+Android logo, presses the Power button three times. Doing so will make your device reboot to eRecovery mode.
In that menu, select Update Mode, then select the Memory card/OTG update mode. The update will now start.

So these were the steps to install the stock dload firmware on Huawei Honor 8X using the memory stick. Let’s now have a look at how the same could be done via NM Card.

Install Dload Firmware using Huawei NM Card

Extract the stock firmware and place the three extracted files on the Huawei NM Card.
Factory reset your device (optional) and then power off your device.
Press the Power button and as it vibrates, it will show the Huawei+Android logo. In this instance, press the Power button 3 times. This takes you to the eRecovery mode.
Select Update mode from the menu and select Memory Card/OTG Update mode. The update will then start.

However, if you wish to carry out the update from the system itself, then follow the instructions mentioned in the next section below.

Update from System

Extract the dload stock firmware of the Huawei Honor 8X and transfer the three extracted files to the Huawei NM Card or to the memory stick.
Now head over to the dialer and enter *#*#2846579#*#*. From the menu that appears, select the Software Update option.
After that, select the Memory Card Upgrade. The system will now read files from the inserted SD card/USB storage or NM Card and will subsequently flash the file.
When the installation is complete, you could safely remove the OTG.

If the above methods, don’t work on your device, you can try the next two methods.

SD Card Update Method

Create a new folder called dload on your MicroSD card.
Extract the downloaded firmware zip file on PC > Copy the UPDATE.APP file into the dload folder on your MicroSD card.
Switch off your handset > Long-press Vol Up + Vol Down + Power key together for a few seconds until the fastboot mode appears.
You’ll see ‘Installing system update’ > Wait for a while > Your device will automatically reboot after flashing.

Manually Flash Stock ROM

First of all, Download and extract the Huawei smartphone Multi Download Tool on your computer.
Now, Download and Install the Huawei Handset Product Line Driver and Huawei USB Driver your PC.
Launch the QPBLFBML01.exe file to open the Huawei Multi-Download Tool.
Next, you will see the XML firmware file upload option.
Click on the Browse button (three-dot icon) and it will ask for the password.
Don’t put anything, just leave it blank and click on the Set button.
Now, select the .xml firmware file for your device and click on Open.
Then click on the Next button.
You will see the installation progress page. Connect your device via a USB cable with the Fastboot or Download Mode.
Next, click on the Scan&Download button to start flashing the stock firmware.
It will automatically detect the Fastboot device and will take some time to install it.
Once flashing is done, restart your device.

Full Instruction Guide

So, that’s all about how to flash the firmware file on Huawei Honor 8X JSN-L21. We hope this tutorial was useful to you. If you find any difficulties or have any doubts, do let us know.
