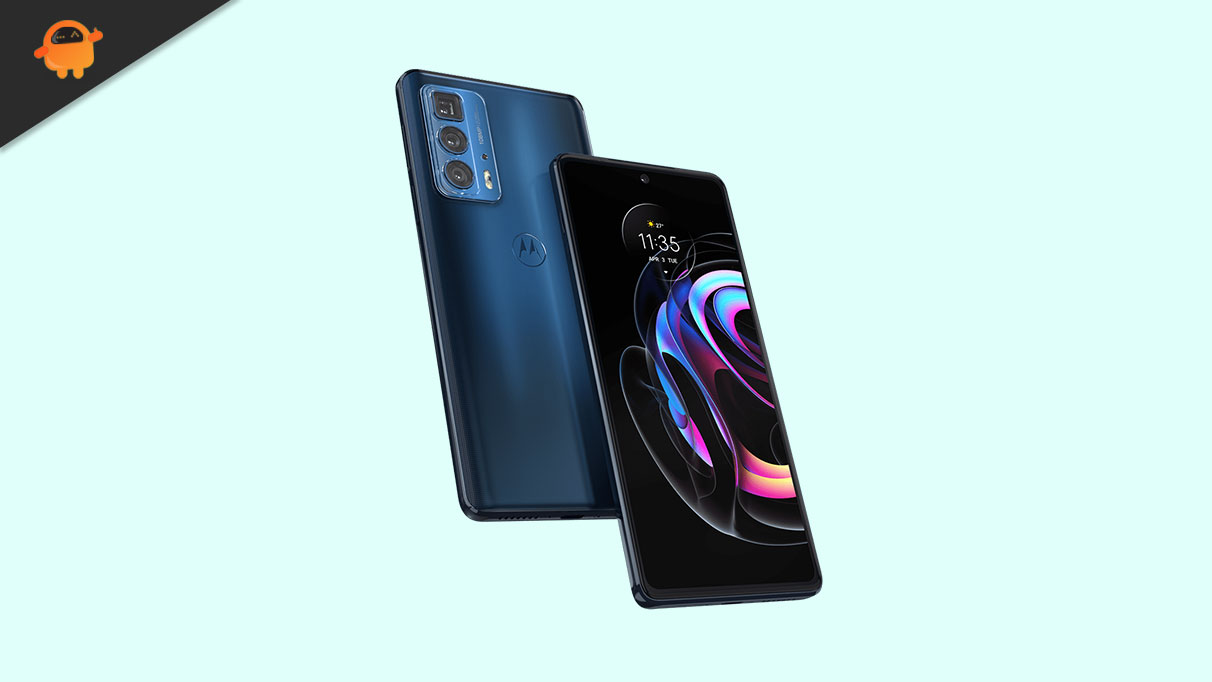

On this page, we have shared the download link and guide to install the Motorola XT2153-1 (Motorola Edge 20 Pro, codenamed pstar) firmware flash file using the fastboot method. Here you will find all stock firmware zip files for all the supported regions with Motorola Edge 20 Pro XT2153-1.
If you are someone who wants to restore the device back to factory firmware, then this guide is for you. By using this guide, you can fix certain software-related issues such as hard brick, soft brick, WiFi, or Bluetooth issue, fix lag or stutter or even you can downgrade the device anytime.
Steps to Install Motorola XT2153-1 Stock Firmware
Now, if you’re ready to flash the stock firmware manually on your Motorola Edge 20 Pro XT2153-1 (pstar) device then you need to download the flash tool, firmware file, and necessary drivers. So, without wasting any more time, let’s get into it.
- This ROM is supported for the Motorola Edge 20 Pro XT2153-1 (pstar) variant only.
- Make sure that your device should be charged at least 50% or higher.
- You will require a PC or Laptop with a USB Data Cable.
- We always recommend our readers take a full data backup of the device for safety purposes.
- Install Motorola USB Drivers and Rescue and Smart Assistant Tool on your PC
- To flash, you must download the ADB and Fastboot tool
Motorola Edge 20 Pro XT2153-1 Firmware Flash Files:
|Flash File Name: S1RAS32.41-20-16-5
Android Version: Android 12
|Flash File Name: S1RAS32.41-20-16-3
Android Version: Android 12
|Flash File Name: RRAS31.Q3-19-86-7
Android Version: Android 11
Firmware Installation Guide:
Check out the firmware flashing guide below for the Motorola Edge 20 Pro XT2153-1 (pstar). First, make sure to install or extract the adb and fastboot tool on your PC. Now enter the bootloader on your device.
Step 1. Bootloader Mode
Enter bootloader mode on your phone. To boot first, turn your phone off. Once your device is turned off completely, press and hold the volume down, and turn it on. You should see the bootloader screen.
Step 2. Connect Your Device to PC:
After booting your Motorola Edge 20 Pro into bootloader mode, now connect it to the PC using the USB Cable.
Step 3. Download Stock ROM/Firmware:
To get the full ROM, you can use the LMSA or Rescue and Smart Assistant Tool. Download the zip file and copy it to somewhere on your PC. LMSA tool will unzip the file and will remove the zip file you downloaded.
You can also download the full stock ROM from the above download flash file section on this guide.
Step 4. Flashing Guide:
- The next step is to open the command window and go to the adb folder
- Enter the following command to flash the firmware.
fastboot flash partition gpt.bin fastboot flash bootloader bootloader.img fastboot flash vbmeta_system vbmeta_system.img fastboot flash vbmeta vbmeta.img fastboot flash radio radio.img fastboot flash bluetooth BTFM.bin fastboot flash dsp dspso.bin fastboot flash logo logo.bin fastboot flash boot boot.img fastboot flash vendor_boot vendor_boot.img fastboot flash dtbo dtbo.img fastboot flash super super.img_sparsechunk.0 fastboot flash super super.img_sparsechunk.1 fastboot flash super super.img_sparsechunk.2 fastboot flash super super.img_sparsechunk.3 fastboot flash super super.img_sparsechunk.4 fastboot flash super super.img_sparsechunk.5 fastboot flash super super.img_sparsechunk.6 fastboot flash super super.img_sparsechunk.7 fastboot flash super super.img_sparsechunk.8 fastboot flash super super.img_sparsechunk.9 fastboot flash super super.img_sparsechunk.10 fastboot flash super super.img_sparsechunk.11 fastboot erase userdata fastboot erase ddr fastboot oem fb_mode_clear fastboot reboot
- Now your device will reboot into bootloader with the firmware you installed.
That’s it, guys. We hope this guide was helpful to you. Feel free to ask in the comment below for additional queries.
