Nokia 3.4 Test Point | EDL Mode | ISP EMMC PinOUT | TA-1288, TA-1285, TA-1283

In this guide, we will show you the real image of the ISP pinout and test point for the Nokia 3.4 (TA-1288, TA-1285, TA-1283). By using the ISP PinOUT, you can easily restore the stock ROM, bypass FRP lock, or reset user data on your device via UFi Box. In this guide, we will also guide you on how to reboot into 9008 EDL Mode.

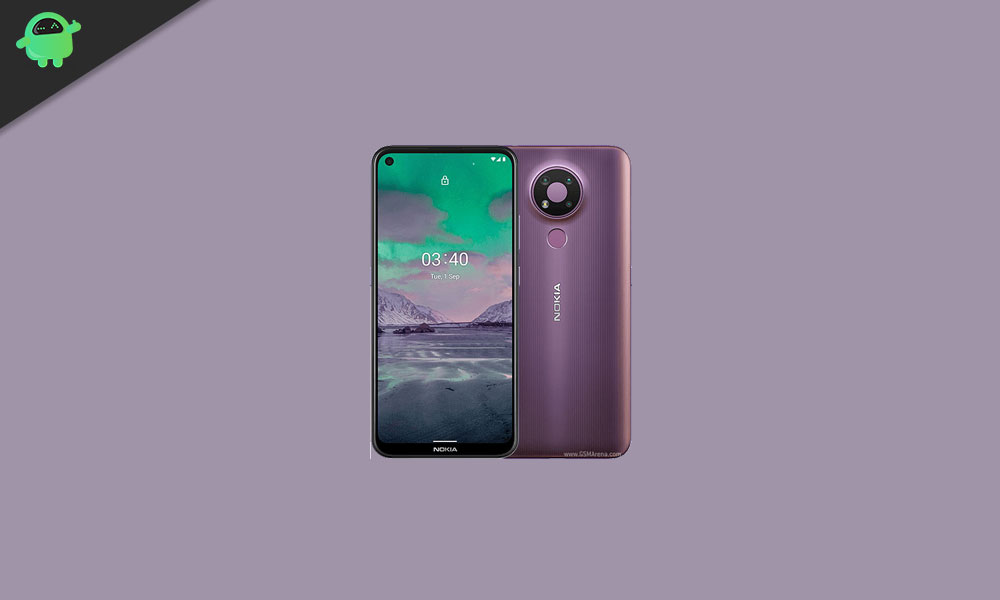

Nokia 3.4

Nokia 3.4 Device Overview:

The all-new Nokia 3.4 comes with a 6.39-inches IPS LCD display, 720×1560 pixels resolution, a 19.5:9 aspect ratio screen. While it’s equipped with an octa-core Qualcomm Snapdragon 460 SoC, Adreno 610 GPU, 3GB/4GB RAM, 32GB/64GB of internal storage, a dedicated microSD card slot, etc.

It runs on Android 10 stock UI out of the box and is expected to receive the Android 11 update soon. While the device packs a triple rear camera setup of a 13MP (wide) + a 5MP (ultrawide) + a 2MP (depth) lens with HDR, PDAF, Panorama, an LED flash, etc. On the other side, it has an 8MP wide-angle selfie camera.

Talking about the connectivity options, it has a 3.5mm headphone jack, Wi-Fi 802.11 b/g/n, Bluetooth 4.2, GPS, A-GPS, GLONASS, GALILEO, BDS, FM Radio, USB Type-C port, and more. The device packs a 4,000mAh battery along with normal charging, a rear-mounted fingerprint sensor, an ambient light sensor, an accelerometer, gyroscope, proximity sensor.

What is ISP PinOUT?

ISP or In-system programming also known as in-circuit serial programming (ICSP) for hardware that has a cross-reference of pins or contacts. By shorting the pins together, you can power or signal the logic board (motherboard) of an electronic device such as a mobile, computer. You will find the IS Pinout connection on the logic board of your device. Therefore, you will need to remove the back panel of the handset and follow the below image to locate the pinout.

Nokia 3.4 Test Point ISP Pinout Image:

How to Enter EDL Mode on Nokia 3.4 (TA-1288, TA-1285, TA-1283)

Follow this instruction carefully to boot your device into EDL Mode (aka Emergency DownLoad Mode)

Method 1: Using ADB

  • Download ADB and Fastboot Tool and extract it to your PC (C:/ Drive)
  • Connect your device to your PC
  • Open the adb command and enter the command
    .\adb reboot edl

Method 2: Using Fastboot

  • Download ADB and Fastboot Tool and extract it to your PC (C:/ Drive)
  • Boot your device into the bootloader
  • Open the command window on your PC on the same folder extracted (ADB and Fastboot Tool)
  • now enter the command
    .\fastboot oem edl

Method 3: By Hardware Test Points / Restore Your device

  • Download the QDLoader driver
  • Find the EDL PinOUT/Test Point on your device (refer to image above to find the test point)
  • To enter EDL mode, you need to use a metal tweezer or a conductive metal wire to short the points.
  • Once you are done, connect your device to the PC using a USB cable
  • This way, your device will enter EDL mode. Now you can open the QFil or QPST Tool to flash the firmware and restore your device.

I hope this guide was helpful to find the Nokia 3.4 (TA-1288, TA-1285, TA-1283) ISP Testpoints.
