Xiaomi Redmi 9 Power Test Point | EDL Mode | ISP EMMC PinOUT

In this guide, we will show you the real image of the ISP pinout and test point for the Xiaomi Redmi 9 Power (limein). By using the ISP PinOUT, you can easily restore the stock ROM, bypass FRP lock, or reset user data on your device via UFi Box. In this guide, we will also guide you on how to reboot into 9008 EDL Mode.

Xiaomi Redmi 9 Power Device Overview:

The Redmi 9 power sport an all-plastic-built budget device. It features a 6.53 inch IPS LCD panel with an FHD+ resolution of 1080 x 2340 pixels. It has an aspect ratio of 19.5:9 and will be protected by Corning Gorilla Glass 3. In terms of processing power, it is powered by Qualcomm Snapdragon 662 processor, which is a lower mid-range processor built on the 11nm manufacturing process. It is an octa-core processor with four Kryo 260 cores clocked at 2.0 GHz and 4 Kryo 260 cores clocked at 1.8 GHz. The device comes with Android 10 out of the box with MIUI 12 running on top.

Coming to the cameras, It sports a triple camera setup at the back, which features a 48MP primary sensor with an f/1.8 lens, an 8MP ultrawide sensor(120 degrees field of view) with an f/2.2 lens, and a 2MP depth sensor with an f/2.4 lens. Coming to the front, It has a single 8MP sensor with an f/2.0 lens, which will be housed in a waterdrop style notch at the top.

The device comes with three RAM variants of the phone with the standard starting at 4GB, which will have internal storage of 128GB. Then we also get a 6GB and an 8GB variant with 128GB of internal storage. And finally, the top variant will have 8GB of RAM and 256GB of internal storage. There is a dedicated slot for MicroSD expansion, though, so even the standard storage of 128GB should be enough for most people. In terms of connectivity, we get Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 4.2, GPS, Infrared sensor, and USB Type-C 2.0. There is a massive 6,000 mAh battery on the phone, which is the USP of the device. It is capable of 18W fast charging and 2.5W reverse charging. It will be available in four color options: Gray, Green, Blue, Orange.

What is ISP PinOUT?

ISP or In-system programming also known as in-circuit serial programming (ICSP) for hardware that has a cross-reference of pins or contacts. By shorting the pins together, you can power or signal the logic board (motherboard) of an electronic device such as a mobile, computer. You will find the IS Pinout connection on the logic board of your device. Therefore, you will need to remove the back panel of the handset and follow the below image to locate the pinout.

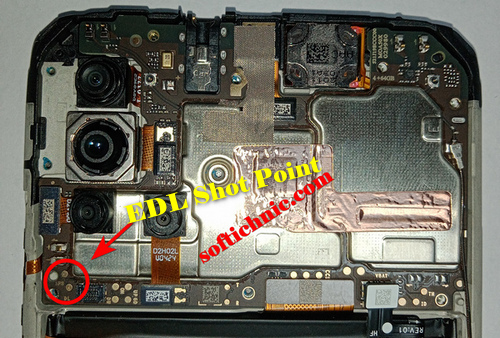

Redmi 9 Power Test Point ISP Pinout Image:

Redmi 9 Power EDL Pinout

Advertisements

How to Enter EDL Mode on Xiaomi Redmi 9 Power (limein)

Follow this instruction carefully to boot your device into EDL Mode (aka Emergency DownLoad Mode)

Method 1: Using ADB

  • Download ADB and Fastboot Tool and extract it to your PC (C:/ Drive)
  • Connect your device to your PC
  • Open the adb command and enter the command
    .\adb reboot edl

Method 2: Using Fastboot

  • Download ADB and Fastboot Tool and extract it to your PC (C:/ Drive)
  • Boot your device into the bootloader
  • Open the command window on your PC on the same folder extracted (ADB and Fastboot Tool)
  • now enter the command
    .\fastboot oem edl

Method 3: By Hardware Test Points / Restore Your device

  • Download the QDLoader driver
  • Find the EDL PinOUT/Test Point on your device (refer to image above to find the test point)
  • To enter EDL mode, you need to use a metal tweezer or a conductive metal wire to short the points.
  • Once you are done, connect your device to the PC using a USB cable
  • This way, your device will enter EDL mode. Now you can open the QFil or QPST Tool to flash the firmware and restore your device.

I hope this guide was helpful to find the Xiaomi Redmi 9 Power (limein) ISP Testpoints.
