How to Install Stock ROM on Motorola One Fusion XT2073-2 (Firmware Guide)

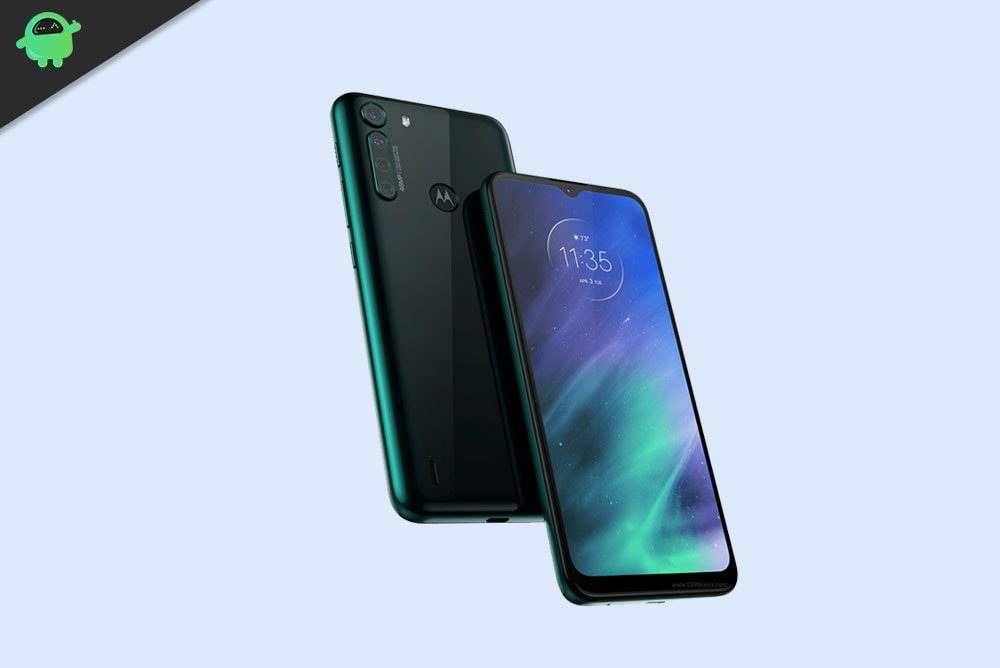

Motorola One Fusion is the latest launched device from Lenovo which was launched in the year 2020. The device came with Android 9.0 Pie out-of-the-box. The device recently received the Android 10 update. In this tutorial, we will help you to flash the stock firmware on Motorola One Fusion XT2073-2.

If you are someone who wants to restore the device back to factory firmware, then this guide is for you. By using this guide, you can fix certain software-related issues such as hard brick, soft brick, WiFi, or Bluetooth issue, fix lag or stutter or even you can downgrade the device anytime.

How to Install Stock ROM on Motorola One Fusion XT2073-2 (Firmware Guide)

The Need to Flash Stock Firmware on Motorola One Fusion

One common query that would come to your mind is why to manually flash the firmware when the device would be getting the OTA updates. Well, this is quite a valid concern from your end. So here’s the thing. The OEM usually releases the updates in batches. In other words, this is a staged rollout where not everyone gets the update at one go. But if you have got hold of the update package, then you could easily cut this wait time and manually flash the stock firmware right away.

Then if you are among the tech enthusiasts, you might consider going for device modifications. These would include the likes of unlocking bootloader, flashing custom recoveries, or rooting it via Magisk. While on one side all these would end up adding new features to your device. However, on the other hand, a slight mistake would end up your device in a boot loop or soft-brick state.  But even then you could bring back your device from dead by flashing the stock firmware onto your Motorola One Fusion device. And in this guide, we will help you with just that.

Steps to Install Motorola XT2073-2 Stock Firmware (Flash File)

Now, if you’re ready to flash the stock firmware manually on your Motorola One Fusion XT2073-2 device then you need to download the flash tool, firmware file, and necessary drivers. So, without wasting any more time, let’s get into it.



GetDroidTips will not be held responsible for any kind of hardware or software damage to your device by following this guide. Proceed at your own risk

Motorola XT2073-2 Firmware Flash Files:

Flash File Name: RPLS31.Q2-63-10-2-9
Model: XT2073-2
Android Version: 11.0
Flash File Name: RPLS31.Q2-63-10-2-8
Model: XT2073-2
Android Version: 11.0
Flash File Name: RPLS31.Q2-63-10-2-4
Model: XT2073-2
Android Version: 11.0
Flash File Name: RPLS31.Q2-63-10-2-2
Model: XT2073-2
Android Version: 11
Flash File Name: QPLS30.62-41-8
Model: XT2073-2
Android Version: 10

Firmware Installation Guide:

Check out the firmware flashing guide below for the Motorola One Fusion XT2073-2. First, make sure to install or extract the adb and fastboot tool on your PC. Now enter the bootloader on your device.

bootloader mode

Step 1. Bootloader Mode

Enter bootloader mode on your phone. To boot first, turn your phone off. Once your device turned off completely, press and hold volume down, and turn it on. You should see the bootloader screen.

Step 2. Connect Your Device to PC:

After booting your Motorola One Fusion into bootloader mode, now connect it to the PC using the USB Cable.

Step 3. Download Stock ROM/Firmware:

To get the full ROM, you can use the LMSA or Rescue and Smart Assistant Tool. Download the zip file and copy it to somewhere on your PC. LMSA tool will unzip the file and will remove the zip file you downloaded.

device rescue Motorola Rescue and Smart Assistant Tool

You can also download the full stock ROM from the above download flash file section on this guide.

Step 4. Flashing Guide:

  1. The next step is to open the command window and go to the adb folder Open Command Window here
  2. Enter the following command to flash the firmware.
    fastboot oem fb_mode_set
    fastboot flash partition gpt.bin
    fastboot flash bootloader bootloader.img
    fastboot flash vbmeta vbmeta.img
    fastboot flash radio radio.img
    fastboot flash logo logo.bin
    fastboot flash boot boot.img
    fastboot flash dtbo dtbo.img
    fastboot flash recovery recovery.img
    fastboot flash super super.img_sparsechunk.0
    fastboot flash super super.img_sparsechunk.1
    fastboot flash super super.img_sparsechunk.2
    fastboot flash super super.img_sparsechunk.3
    fastboot flash super super.img_sparsechunk.4
    fastboot flash super super.img_sparsechunk.5
    fastboot flash super super.img_sparsechunk.6
    fastboot flash super super.img_sparsechunk.7
    fastboot flash super super.img_sparsechunk.8
    fastboot flash super super.img_sparsechunk.9
    fastboot flash super super.img_sparsechunk.10
    fastboot flash super super.img_sparsechunk.11
    fastboot flash super super.img_sparsechunk.12
    fastboot flash super super.img_sparsechunk.13
    fastboot flash super super.img_sparsechunk.14
    fastboot flash super super.img_sparsechunk.15
    fastboot flash dsp dspso.bin
    fastboot flash erase userdata
    fastboot flash erase ddr
    fastboot oem fb_mode_clear
  3. Now you can reboot into bootloader with the firmware you installed.

That’s it, guys. We hope this guide was helpful to you. Feel free to ask in the comment below for additional queries.
