Samsung Galaxy A01 SM-A015F/M ISP PinOUT | Test Point | EDL Mode 9008

The South-Korean OEM Samsung has recently launched its A-series entry-level budget category smartphone named Samsung Galaxy A01. The device runs on Android 10 on-the-top of One UI 2.0 skin. Speaking about the handset, it has an HD+ display, an octa-core chipset, 2GB of RAM, 16GB storage, etc.

In this guide, we will show you the real image of the ISP pinout and test point for the Samsung Galaxy A01 SM-A015F/M. By using the ISP PinOUT, you can easily restore the stock ROM, bypass FRP lock, or reset user data on your device via UFi Box. In this guide, we will also guide you on how to reboot into 9008 EDL Mode.

What is ISP PinOUT?

ISP or In-system programming also known as in-circuit serial programming (ICSP) for hardware that has a cross-reference of pins or contacts. By shorting the pins together, you can power or signal the logic board (motherboard) of an electronic device such as a mobile, computer. You will find the IS Pinout connection on the logic board of your device. Therefore, you will need to remove the back panel of the handset and follow the below image to locate the pinout.

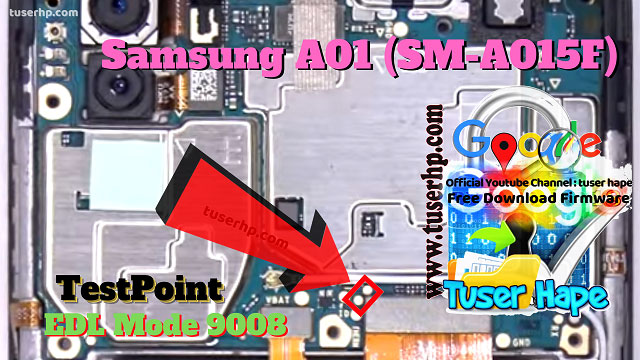

Samsung Galaxy A01 SM-A015F/M ISP Pinout Image:

Samsung Galaxy A01 SM-A015F M ISP PinOUT

How to Enter EDL Mode on Samsung Galaxy A01 (SM-A015F/M)

Follow this instruction carefully to boot your device into EDL Mode (aka Emergency DownLoad Mode)

Method 1: Using ADB

  • Download ADB and Fastboot Tool and extract it in your PC (C:/ Drive)
  • Connect your device to your PC
  • Open the adb command and enter the command
.\adb reboot edl

Method 2: Using Fastboot

  • Download ADB and Fastboot Tool and extract it in your PC (C:/ Drive)
  • Boot your device into the bootloader
  • Open the command window on your PC on the same folder extracted (ADB and Fastboot Tool)
  • now enter the command
    .\fastboot oem edl

Method 3: By Hardware Test Points / Restore Your device

  • Download the QDLoader driver
  • Find the EDL PinOUT/Test Point on your device (refer image above to find the test point)
  • To enter EDL mode, you need to use a metal tweezer or a conductive metal wire to short the points.
  • Once you are done, connect your device to the PC using a USB cable
  • This way, your device will enter EDL mode. Now you can open the QFil or QPST Tool to flash the firmware and restore your device.

I hope this guide was helpful to find the Samsung Galaxy A01 SM-A015F/M ISP Testpoints.
