How to Install Stock ROM on Moto E 2020 XT2052-1 (Firmware Guide)

Updated on February 3, 2021 by Abd Razaaq

Advertisements

On this page, we have shared the download link and guide to install the Motorola XT2052-1 (Motorola Moto E 2020) firmware flash file using the fastboot method. Here you will find all stock firmware zip files for all the supported regions with Motorola Moto E 2020 XT2052-1.

If you are someone who wants to restore the device back to factory firmware, then this guide is for you. By using this guide, you can fix certain software-related issues such as hard brick, soft brick, WiFi, or Bluetooth issue, fix lag or stutter or even you can downgrade the device anytime.

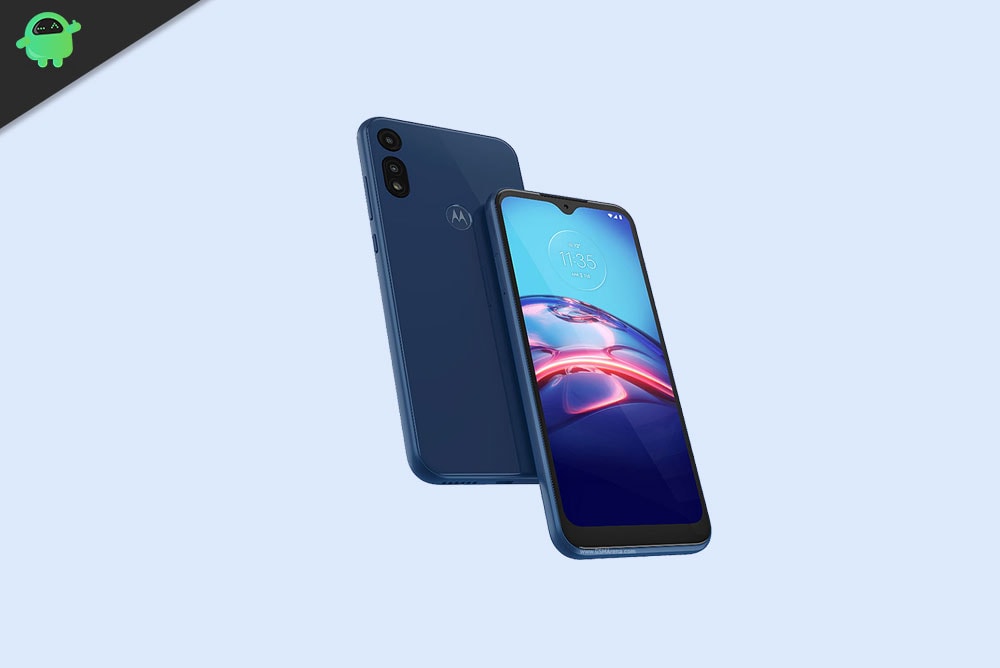

Moto E 2020

Table of Contents

  • 1 Steps to Install Motorola XT2052-1 Stock Firmware
    • 1.1 Pre-Requirements:
  • 2 Motorola Moto E 2020 XT2052-1 Firmware Flash Files:
    • 2.1 Firmware Installation Guide:

Steps to Install Motorola XT2052-1 Stock Firmware

Now, if you’re ready to flash the stock firmware manually on your Motorola Moto E 2020 XT2052-1 device then you need to download the flash tool, firmware file, and necessary drivers. So, without wasting any more time, let’s get into it.

Advertisements

Pre-Requirements:

  • This ROM is supported for the Motorola Moto E 2020 XT2052-1 (ginna) variant only.
  • Make sure that your device should be charged at least 50% or higher.
  • You will require a PC or Laptop with a USB Data Cable.
  • We always recommend our readers take a full data backup of the device for safety purposes.
  • Install Motorola USB Drivers and Rescue and Smart Assistant Tool on your PC
  • To flash, you must download the ADB and Fastboot tool
Disclaimer:
GetDroidTips will not be held responsible for any kind of hardware or software damage to your device by following this guide. Proceed at your own risk

Motorola Moto E 2020 XT2052-1 Firmware Flash Files:

Flash File Name: QPGS30.82-105-4
Model: XT2052-1
Android Version: 10
Download

Firmware Installation Guide:

Check out the firmware flashing guide below for the Motorola Moto E 2020 XT2052-1. First, make sure to install or extract the adb and fastboot tool on your PC. Now enter the bootloader on your device.

bootloader mode

Step 1. Bootloader Mode

Enter bootloader mode on your phone. To boot first, turn your phone off. Once your device turned off completely, press and hold volume down, and turn it on. You should see the bootloader screen.

Step 2. Connect Your Device to PC:

After booting your Motorola Moto E 2020 into bootloader mode, now connect it to the PC using the USB Cable.

Step 3. Download Stock ROM/Firmware:

To get the full ROM, you can use the LMSA or Rescue and Smart Assistant Tool. Download the zip file and copy it to somewhere on your PC. LMSA tool will unzip the file and will remove the zip file you downloaded.

Advertisements

device rescue Motorola Rescue and Smart Assistant Tool

You can also download the full stock ROM from the above download flash file section on this guide.

Step 4. Flashing Guide:

    1. The next step is to open the command window and go to the adb folder Open Command Window here
    2. Enter the following command to flash the firmware.
      fastboot oem fb_mode_set
      fastboot flash partition gpt.bin
      fastboot flash bootloader bootloader.img
      fastboot flash vbmeta vbmeta.img fastboot
      flash bluetooth BTFM.bin
      fastboot flash dtbo dtbo.img
      fastboot flash logo logo.bin
      fastboot flash boot boot.img
      fastboot flash fsg fsg.mbn
      fastboot flash system system.img_sparsechunk.0
      fastboot flash system system.img_sparsechunk.1
      fastboot flash system system.img_sparsechunk.2
      fastboot flash system system.img_sparsechunk.3
      fastboot flash system system.img_sparsechunk.4
      fastboot flash system system.img_sparsechunk.5
      fastboot flash system_b system_other.img
      fastboot flash vendor vendor.img_sparsechunk.0
      fastboot flash vendor vendor.img_sparsechunk.1
      fastboot flash oem oem.img
      fastboot flash oem_b oem_other.img
      fastboot flash erase userdata
      fastboot flash erase ddr
      fastboot flash dsp dspso.bin
      fastboot oem fb_mode_clear

    3.  Now your device will reboot into bootloader with the firmware you installed.

That’s it, guys. We hope this guide was helpful to you. Feel free to ask in the comment below for additional queries.
