Official TWRP Recovery on Nexus 5X (How to Root and Install)

Advertisements

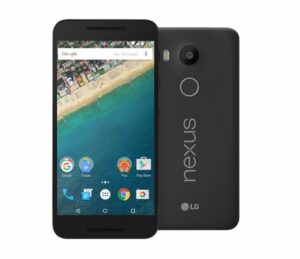

LG/Google Nexus 5X (codename: bullhead) was launched in the year September 2015. The phone came out of the box with Android 6.0 Marshmallow and later upgrade to Android 8.0 Oreo. Recently this device has received the official TWRP recovery support. So, on this page, we will guide you to install the TWRP Recovery on Nexus 5X. This guide contains both the written instruction and video tutorial to help you install it quickly. Make sure to download the files required and then jump straight into instruction on how to install TWRP Recovery and Root your Nexus 5X.

Keep in mind that before heading over to the process, you will need to unlock the device bootloader at first. As the smartphone OEMs provide a locked bootloader to its devices due to some security concerns, in order to install any third-party file, you will need to unlock the bootloader. Then you will be capable to install TWRP Custom Recovery on your Nexus 5X device and root as well. The TWRP Recovery can also take Nandroid backups, restore, wipe out system/data/cache, and more.

Talking about the specifications, Nexus 5X features a 5.2-inches display with a screen resolution of 1080 x 1920 pixels. It is powered by Qualcomm MSM8992 Snapdragon 808 processor coupled with 2GB of RAM. The phone packs 16/32GB internal memory. The camera on the Nexus 5X comes with 12.3MP and 5MP front shooting camera. It is backed by a Non-removable Li-Po 2700 mAh battery. It also has a fingerprint sensor on the back.

TWRP Recovery and its Advantages

Team Win Recovery Project is an open-source software custom recovery image for Android-based devices. It provides a touchscreen-enabled interface that allows users to install third-party firmware and back up the current system which is functions often unsupported by stock recovery images. – WikiPedia

Advantages of TWRP Recovery:

You can flash Custom ROM on Nexus 5X using TWRP
You can flash modding zip files to customize your phone
Easy to flash and use Xposed Modules using TWRP
Easy to Root and Unroot using TWRP Recovery flashable zip SuperSU
You can install Magisk on Nexus 5X
Easy to Create and Restore Nandroid Backup using TWRP Recovery.
Easy access to restore the Nandroid Backup.
You can flash the image file using TWRP Recovery on Nexus 5X
Easy to remove all bloatware using TWRP Recovery on Nexus 5X.
To underclock and overclock.
You can clean Wipe, Cache, and Data.

How to Install Official TWRP Recovery on Nexus 5X (bullhead)

Before going to the TWRP installation process, make sure to follow all the pre-requirements mentioned below properly.

Pre-Requirements:

The file and guide are supported for the Nexus 5X (bullhead) model only. Don’t try it on other devices.
Nexus 5X bootloader should be unlocked.
A PC/Laptop and a USB cable are required for this process.
Make sure to take a Full Backup of Device Data (No Root).
Charge your device battery to full.
Download All Required Files:
- No Verity opt Encrypt
- Download SuperSU Zip – For root using SuperSU
- Download Magisk Zip – For root using Magisk
- USB Drivers: Google USB Drivers
- Download ADB and Fastboot and install it on your PC

TWRP Recovery Details

File Name	TWRP Recovery
Version	V3.4.0 and Higher
Support	Official
Developer	TWRP Team
Download Link	Download

Disclaimer:

GetDroidTips will not be responsible for any kind of damage or error that occurs to your device while/after installing the files or following this guide. Make sure to take a complete backup before doing anything. Do this at your own risk.

Method: ADB and Fastboot Tool

After downloading all the required files, drivers, and tools, follow the installation process.

First of all, enable the Developer Options and USB Debugging mode on your device.
Head over to the device Settings > System > About Phone > then tap on the Build Number for seven times to enable Developer options mode.
Now, go to the Developer options in the Settings menu and turn on the toggle to enable USB debugging.
Next, open the ADB & Fastboot folder on your computer. Then press and hold the Shift key and right mouse click to open the command window.
Turn off your device > Press and hold the Volume Up + Power button together for a few seconds to enter into Fastboot mode.
Connect your device with the PC via a USB cable and type the following code on the command windows and hit enter:

adb reboot bootloader

Now, your device is connected successfully as a fastboot device.
Type the following command and hit enter to check the fastboot device connected or not:

fastboot devices

Now, in order to install TWRP Recovery on your phone, type the following command and press enter:

fastboot flash recovery twrpname.img

To just boot, you can use the command fastboot boot twrpname.img
That’s it. You’ve successfully installed the TWRP Recovery on the Nexus 5X device. Now, you have to flash the Root.

What is Root?

Smartphone Rooting is the unofficial way to enable an administrator or superuser access to your device system and subsystem. Therefore, the user can easily tweak, change, edit, or delete system files and apps easily.

The advantage of Rooting:

You can get access to all files on your Nexus 5X, even the files which present in the root directory of your phone.
You can increase the performance of your Nexus 5X by overclocking.
By rooting you can increase battery life by underclocking Nexus 5X.
Uninstall Bloatware on Nexus 5X.
You can block Ads on any Android applications such as Youtube and other game-related applications.

Also Read: Top 5 Adblock Plus Alternatives for Android

By Rooting Nexus 5X, you can View, Edit, or Delete any system file inside the root directory.
You can install the Xposed Framework and many Xposed module support.

Steps to Root Nexus 5X

Guide to Root Nexus 5X via SuperSU

Guide to Root Nexus 5X via Magisk

We assume that this full-depth installation guide will be helpful to you. For any queries, feel free to ask in the comments below.
