On this page, we will guide you to install the TWRP Recovery on Sony Xperia 1 IV (PDX223). This guide contains both the written instruction and a video tutorial to help you install it quickly. Make sure to download the files required and then jump straight into instructions on how to install TWRP Recovery on Sony Xperia 1 IV.
Keep in mind that before heading over to the process, you will need to unlock the device bootloader at first. As the smartphone OEMs provide a locked bootloader to their devices due to some security concerns, in order to install any third-party file, you will need to unlock the bootloader. Then you will be capable to install TWRP Custom Recovery on your Sony Xperia 1 IV device and root as well. The TWRP Recovery can also take Nandroid backups, restore, wipe out system/data/cache, and more.
Page Contents

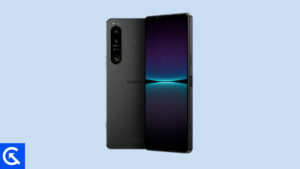

Sony Xperia 1 IV Specification:
Sony Xperia 1 IV features a stunning 6.5-inch OLED display with a resolution of 1644 x 3840 pixels, offering a cinematic 21:9 ratio and a pixel density of approximately 643 ppi. The display, protected by Corning Gorilla Glass Victus, supports a 120Hz refresh rate and HDR BT.2020, providing users with a visually immersive experience. Powered by the Qualcomm SM8450 Snapdragon 8 Gen 1 chipset and Adreno 730 GPU, the Xperia 1 IV runs on Android 12, with an upgrade path to Android 13. It comes in multiple internal storage configurations, including 256GB with 12GB RAM and 512GB with 12GB or 16GB RAM, utilizing UFS technology for faster data access.
Photography enthusiasts will appreciate the triple camera setup on the back, featuring a 12 MP wide lens, 12 MP telephoto lenses with continuous optical zoom, a 12 MP ultrawide lens, and a 0.3 MP TOF 3D depth sensor. The front-facing 12 MP selfie camera ensures high-quality self-portraits. The camera system supports 4K video recording at various frame rates and is equipped with advanced features like Zeiss optics, LED flash, panorama, HDR, and eye tracking.
In terms of audio, the Xperia 1 IV excels with stereo speakers, a 3.5mm jack for traditional audio enthusiasts, and a dynamic vibration system for added sensory experience. Connectivity options are comprehensive, including Wi-Fi 802.11 a/b/g/n/ac/6e, Bluetooth 5.2, NFC, and USB Type-C 3.2 with OTG and video output capabilities. The phone is equipped with a side-mounted fingerprint sensor and a range of sensors such as accelerometer, gyro, proximity, barometer, compass, and a color spectrum sensor. With native Sony Alpha camera support, this smartphone bridges the gap between mobile and professional photography. The 5000 mAh non-removable battery supports 30W wired charging, allowing users to reach 50% capacity in just 30 minutes, and it also supports wireless charging and reverse wireless charging for added convenience.
TWRP Recovery and its Advantages
Team Win Recovery Project is an open-source software custom recovery image for Android-based devices. It provides a touchscreen-enabled interface that allows users to install third-party firmware and back up the current system which is functions often unsupported by stock recovery images. – Wikipedia
Advantages of TWRP Recovery:
- You can flash Custom ROM on Sony Xperia 1 IV using TWRP
- You can flash modding zip files to customize your phone
- Easy to flash and use Xposed Modules using TWRP
- Easy to Root and Unroot using TWRP Recovery flashable zip SuperSU
- You can install Magisk on Sony Xperia 1 IV
- Easy to Create and Restore Nandroid Backup using TWRP Recovery.
- Easy access to restore the Nandroid Backup.
- You can flash the image file using TWRP Recovery on Sony Xperia 1 IV
- Easy to remove all bloatware using TWRP Recovery on Sony Xperia 1 IV.
- To underclock and overclock.
- You can clean Wipe, Cache, and Data.
Steps to Install TWRP Recovery For Sony Xperia 1 IV (PDX223)
Before going to the TWRP installation process, make sure to follow all the pre-requirements mentioned below properly.
Pre-Requirements:
- The file and guide are supported for the Sony Xperia 1 IV (PDX223) model. Don’t try it on other devices.
- Sony Xperia 1 IV bootloader should be unlocked.
- A PC/Laptop and a USB cable are required for this process.
- Make sure to take a Full Backup of Device Data (No Root).
- Charge your device battery to full.
- Download All Required Files:
- No Verity opt Encrypt
- Download SuperSU Zip – For root using SuperSU
- Download Magisk Zip – For root using Magisk
- USB Drivers: Sony USB Drivers
- Download ADB and Fastboot and install them on your PC
TWRP Recovery Details
| File Name | TWRP Recovery |
| Version | Latest |
| Support | Unofficial |
| Developer | loipuru |
Disclaimer:
Method: ADB and Fastboot Tool
After downloading all the required files, drivers, and tools, follow the installation process.
- First of all, enable the Developer Options and USB Debugging mode on your device.
- Head over to the device Settings > System > About Phone > then tap on the Build Number seven times to enable Developer options mode.
- Now, go to the Developer options in the Settings menu and turn on the toggle to enable USB debugging.
- Next, open the ADB & Fastboot folder on your computer. Then press and hold the Shift key and right mouse click to open the command window.
- Turn off your device > Press and hold the Volume Up + Power button together for a few seconds to enter into Fastboot mode.
- Connect your device with the PC via a USB cable and type the following code on the command windows and hit enter:
adb reboot bootloader
- Now, your device is connected successfully as a fastboot device.
- Type the following command and hit enter to check the fastboot device is connected or not:
fastboot devices
Now, in order to install TWRP Recovery on your phone, type the following command and press enter:
fastboot flash recovery_a twrp.img
fastboot flash recovery_b twrp.img
- Then reboot in TWRP manually or using a fastboot command
fastboot oem reboot-recovery
Or
fastboot boot twrpname.img
- That’s it. You’ve successfully installed the TWRP Recovery on the Sony Xperia 1 IV device. Now, you have to flash the Root.
What is Root?
Smartphone Rooting is the unofficial way to enable an administrator or superuser access to your device system and subsystem. Therefore, the user can easily tweak, change, edit, or delete system files and apps easily.
With the help of rooting, you can uninstall bloatware, increase device performance, reduce battery draining, install Xposed modules, and more. However, smartphone rooting will void the device warranty and you may not get software OTA updates anymore. An improper way of rooting can also brick your device easily. Therefore, make sure to follow the guide properly.
The advantage of Rooting:
- You can get access to all files on your Sony Xperia 1 IV, even the files present in the root directory of your phone.
- You can increase the performance of your Sony Xperia 1 IV by overclocking.
- By rooting you can increase battery life by underclocking Sony Xperia 1 IV.
- Uninstall Bloatware on Sony Xperia 1 IV.
- You can block Ads on any Android applications such as Youtube and other game-related applications.
Also Read: Top 5 Adblock Plus Alternatives for Android
- By Rooting Sony Xperia 1 IV, you can View, Edit, or Delete any system file inside the root directory.
- You can install the Xposed Framework and many Xposed module support.
Steps to Root Sony Xperia 1 IV
Guide to Root Sony Xperia 1 IV via SuperSU
Guide to Root Sony Xperia 1 IV via Magisk
We assume that this full-depth installation guide will be helpful to you. For any queries, feel free to ask in the comments below.
