How to Install Official TWRP Recovery on Xiaomi Redmi 4X and Root it

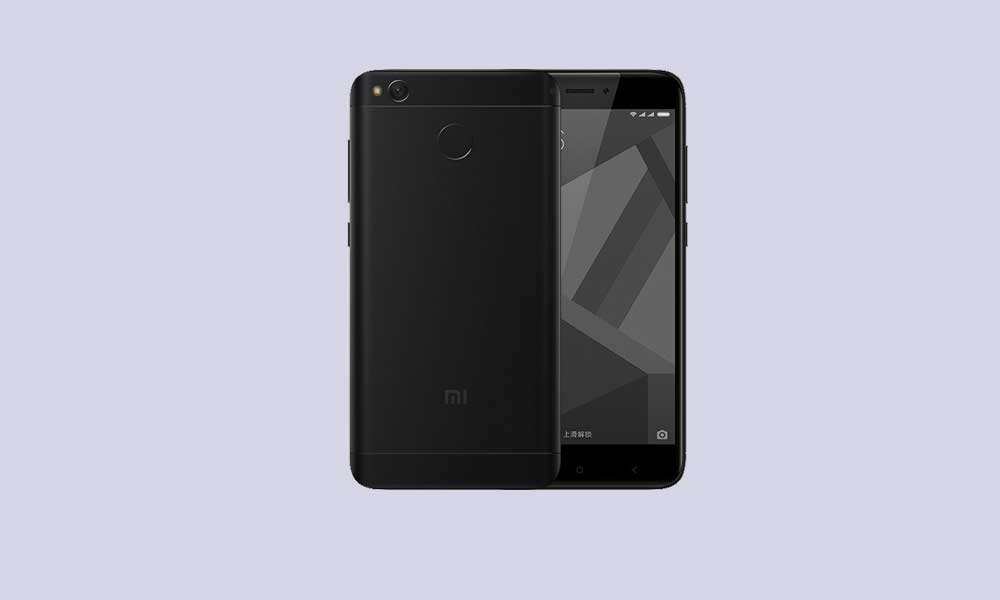

Xiaomi Redmi 4X (codename: santoni) was launched in the year May 2017. The phone came out of the box with Android 6.0.1 Marshmallow and later upgrade to Android 7.1.2 Nougat. Recently this device has received the official TWRP recovery support. So, on this page, we will guide you to install the TWRP Recovery on Xiaomi Redmi 4X. This guide contains both the written instruction and video tutorial to help you install it quickly. Make sure to download the files required and then jump straight into instruction on how to install TWRP Recovery and Root your Xiaomi Redmi 4X.

Keep in mind that before heading over to the process, you will need to unlock the device bootloader at first. As the smartphone OEMs provide a locked bootloader to its devices due to some security concerns, in order to install any third-party file, you will need to unlock the bootloader. Then you will be capable to install TWRP Custom Recovery on your Xiaomi Redmi 4X device and root as well. The TWRP Recovery can also take Nandroid backups, restore, wipe out system/data/cache, and more.

Talking about the specifications, Redmi 4X features a 5.0-inches display with a screen resolution of 720 x 1280 pixels. It is powered by Qualcomm MSM8940 Snapdragon 435 processor coupled with 2/3/4GB of RAM. The phone packs 16/32/64GB internal memory. The camera on the Redmi 4X comes with Dual 13MP and 5MP front shooting camera. It is backed by a Non-removable Li-Po 4100 mAh battery. It also has Fingerprint sensor on the back.

• Xiaomi Redmi 4X Stock Firmware Collections
• List of Best Custom ROM for Xiaomi Redmi 4X [Updated]

TWRP Recovery and its Advantages

Team Win Recovery Project is an open-source software custom recovery image for Android-based devices. It provides a touchscreen-enabled interface that allows users to install third-party firmware and back up the current system which is functions often unsupported by stock recovery images. – WikiPedia

How to Install Official TWRP Recovery on Xiaomi Redmi 4X (santoni)

Before going to the TWRP installation process, make sure to follow all the pre-requirements mentioned below properly.

Pre-Requirements:

• The file and guide are supported for the Xiaomi Redmi 4X (santoni) model only. Don’t try it on other devices.
• Xiaomi Redmi 4X bootloader should be unlocked.
• A PC/Laptop and a USB cable are required for this process.
• Make sure to take a Full Backup of Device Data (No Root).
• Charge your device battery to full.
• Download All Required Files:
  • No Verity opt Encrypt
  • Download SuperSU Zip – For root using SuperSU
  • Download Magisk Zip – For root using Magisk
  • USB Drivers: Xiaomi USB Drivers | Qualcomm
  • Download ADB and Fastboot and install it on your PC

TWRP Recovery Details

Method: ADB and Fastboot Tool

After downloading all the required files, drivers, and tools, follow the installation process.

• First of all, enable the Developer Options and USB Debugging mode on your device.
• Head over to the device Settings > System > About Phone > then tap on the Build Number for seven times to enable Developer options mode.
• Now, go to the Developer options in the Settings menu and turn on the toggle to enable USB debugging.
• Next, open the ADB & Fastboot folder on your computer. Then press and hold the Shift key and right mouse click to open the command window.
• Turn off your device > Press and hold the Volume Up + Power button together for a few seconds to enter into Fastboot mode.
• Connect your device with the PC via a USB cable and type the following code on the command windows and hit enter:

adb reboot bootloader

• Now, your device is connected successfully as a fastboot device.
• Type the following command and hit enter to check the fastboot device connected or not:

fastboot devices

• Now, in order to install TWRP Recovery on your phone, type the following command and press enter:

fastboot flash recovery twrpname.img

• To just boot, you can use the command fastboot boot twrpname.img
• That’s it. You’ve successfully installed the TWRP Recovery on the Xiaomi Redmi 4X device. Now, you have to flash the Root.

What is Root?

Smartphone Rooting is the unofficial way to enable an administrator or superuser access to your device system and subsystem. Therefore, the user can easily tweak, change, edit, or delete system files and apps easily.

With the help of rooting, you can uninstall bloatware, increase device performance, reduce battery draining, install Xposed modules, and more. However, smartphone rooting will void the device warranty and you may not get software OTA updates anymore. Improper way of rooting can also brick your device easily. Therefore, make sure to follow the guide properly.

The advantage of Rooting:

• You can get access to all files on your Xiaomi Redmi 4X, even the files which present in the root directory of your phone.
• You can increase the performance of your Xiaomi Redmi 4X by overclocking.
• By rooting you can increase battery life by underclocking Xiaomi Redmi 4X.
• Uninstall Bloatware on Xiaomi Redmi 4X.
• You can block Ads on any Android applications such as Youtube and other game-related applications.

Also Read: Top 5 Adblock Plus Alternatives for Android

• By Rooting Xiaomi Redmi 4X, you can View, Edit, or Delete any system file inside the root directory.
• You can install the Xposed Framework and many Xposed module support.

Steps to Root Xiaomi Redmi 4X

Guide to Root Xiaomi Redmi 4X via SuperSU

Guide to Root Xiaomi Redmi 4X via Magisk

We assume that this full-depth installation guide will be helpful to you. For any queries, feel free to ask in the comments below.
